China 55-caliber hot runner five-gallon bottle cap mould, bottled water matching bottle cap mould manufacturer customization

1. Product description

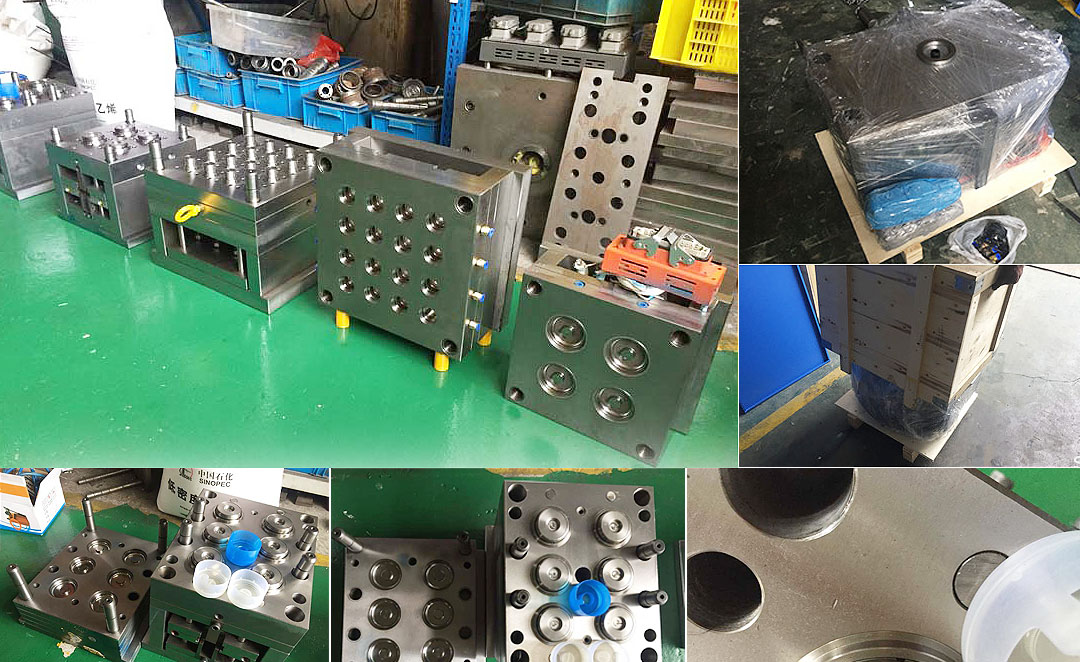

"1" Bottle Cap Mould

Every PET bottle has a suitable plastic cap, and a suitable cap can enhance the appearance of the bottle. SH provides our customers with high-quality hot runner & cold runner bottle cap injection molds and flip cap molds to make ideal plastic bottle caps. In our product list, you can find the corresponding molds for making various bottle caps, such as general screw caps, security caps, pop-up caps, etc. These bottle caps are suitable for mineral water bottles, soft drink bottles, juice bottles, and some food and non-food packaging containers.

"2" bottle cap design

The SH design department uses advanced 2D&3D software. These softwares can be used not only for bottle cap design but also for designing other more complex plastic products. Experienced designers and advanced design tools enable MG to transform your bottle cap design concept into reality to meet customer requirements for finished products.

1. The molds range from 1×1 to 1×32 models.

2. The template is made of stainless steel.

3. Standard exchangeable mold parts.

4. Uniquely designed nozzle.

5. The high-performance hot runner system ensures the uniform distribution of fluid and air pressure in each cavity.

6. All parts are produced with CNC equipment.

"3" Hot runner system:

The cap injection mold uses a hot runner system with superior thermal conductivity. The heat conduction is fast, and the temperature can be raised quickly during the manufacturing process of the bottle cap to achieve the ideal heating effect. There is a miniature nozzle in each cavity of the hot runner bottle cap injection mold, which ensures a large injection flow rate, a small cap connection point, and good thermal conductivity.

"4" Steel and processing tools:

The cap injection mold is made of high-quality steel. In order to meet different processing requirements, different mold steels are also used to make cores, mold cavities, guide posts, frames, etc., respectively. High hardness and good processing performance are the advantages of the above steels. CNC machining center, high-precision coordinate boring machine, high-pressure EDM forming machine ensure precise processing and high-quality finished products. The main feature of these equipment is precise and fast processing.

Before designing the bottle cap, we paid great attention to the shape of the bottle cap and the thread of the bottle cap. In the manufacturing process, we use the most suitable processing technology and tools. After assembling, we will try out the mold several times, and if necessary, we will make corresponding adjustments to meet customer requirements
