CAPMOULD
Precision injection moulds for pharmaceutical, diagnostic, and medical device caps. Cleanroom‑compatible, FDA & ISO 13485 compliant, and engineered for high‑purity production.
Request a Quote NowThree core mould categories for pharmaceutical and diagnostic cap applications — from child‑resistant to tamper‑evident.

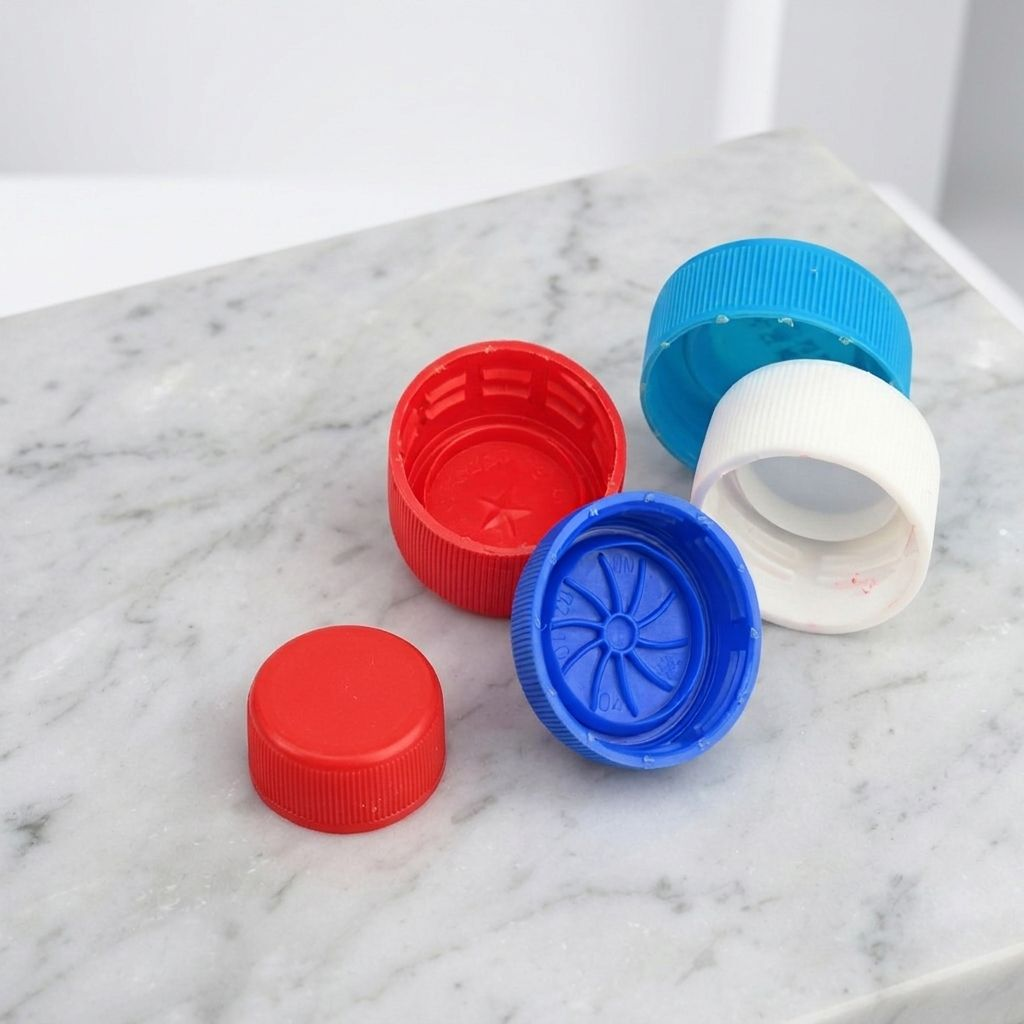

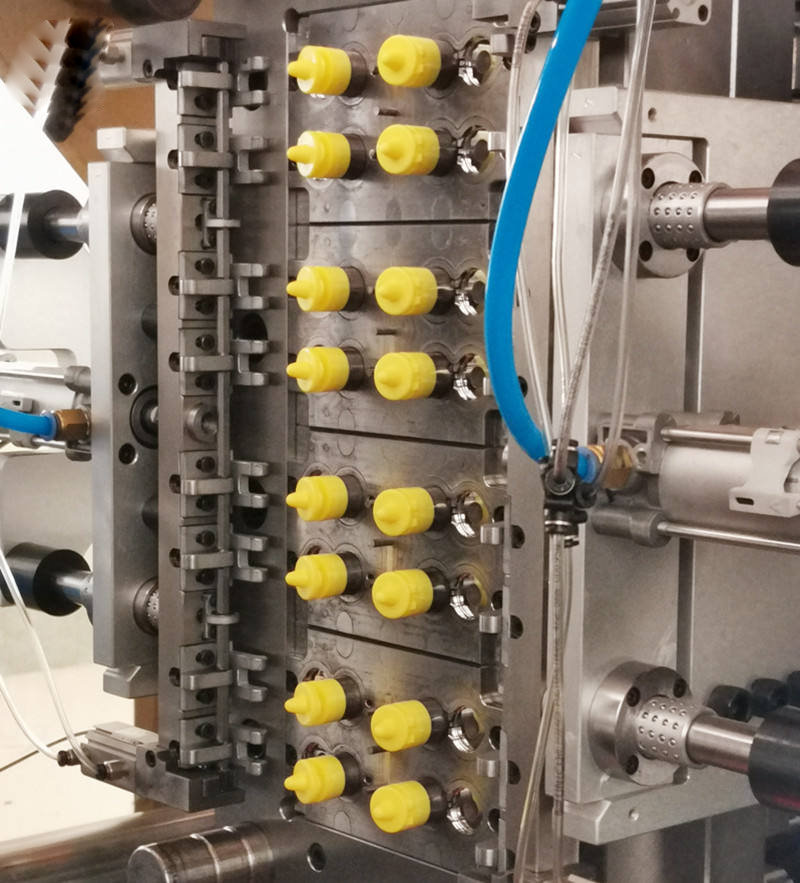

For syrup and tablet bottles. Cleanroom‑ready, 48 cavities, hot runner, cycle time 5.8s.

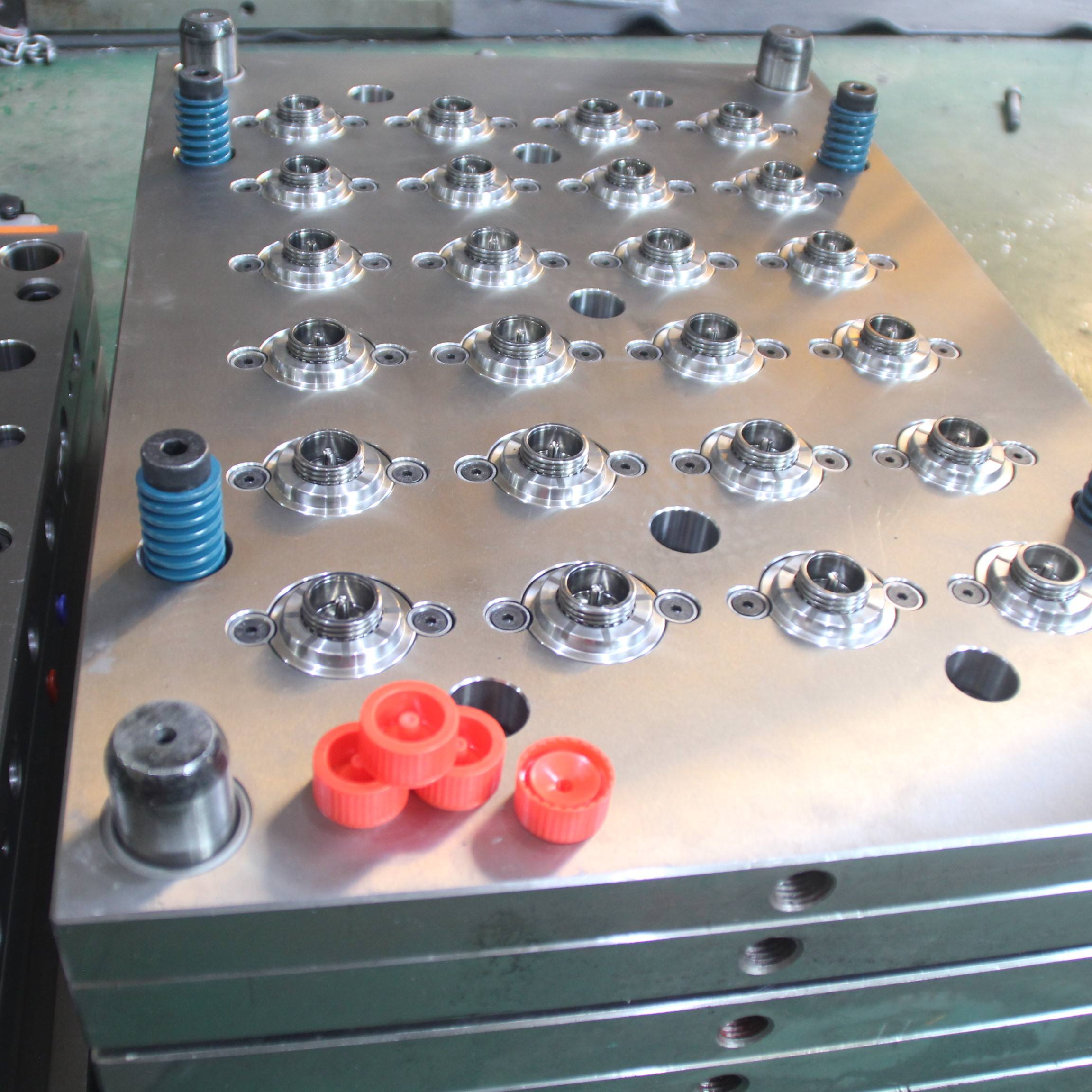

Push‑and‑turn design meeting ISO 8317. Precision thread and clutch mechanism, 32 cavities.

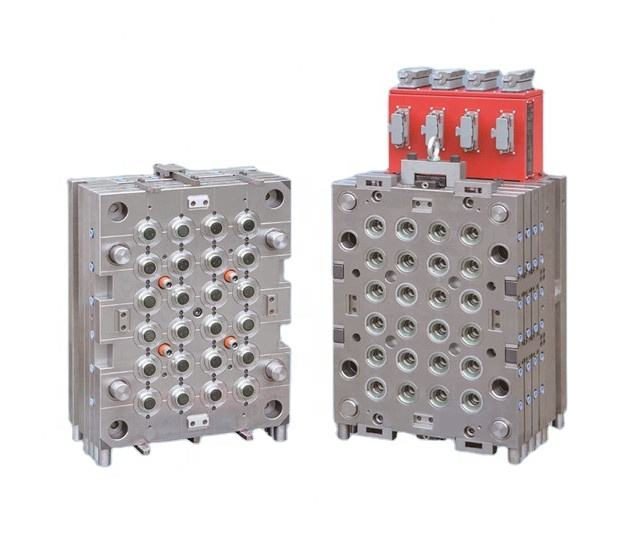

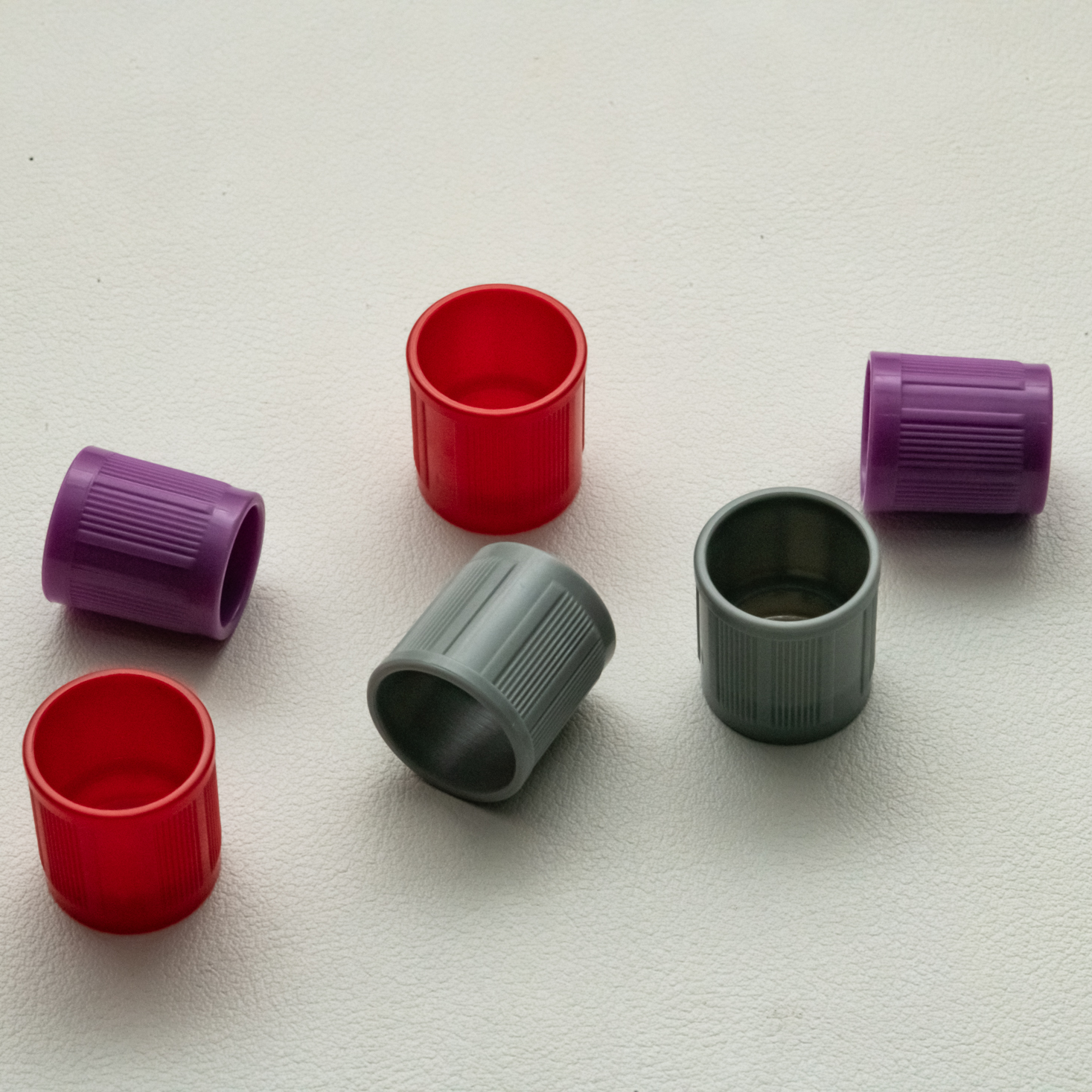

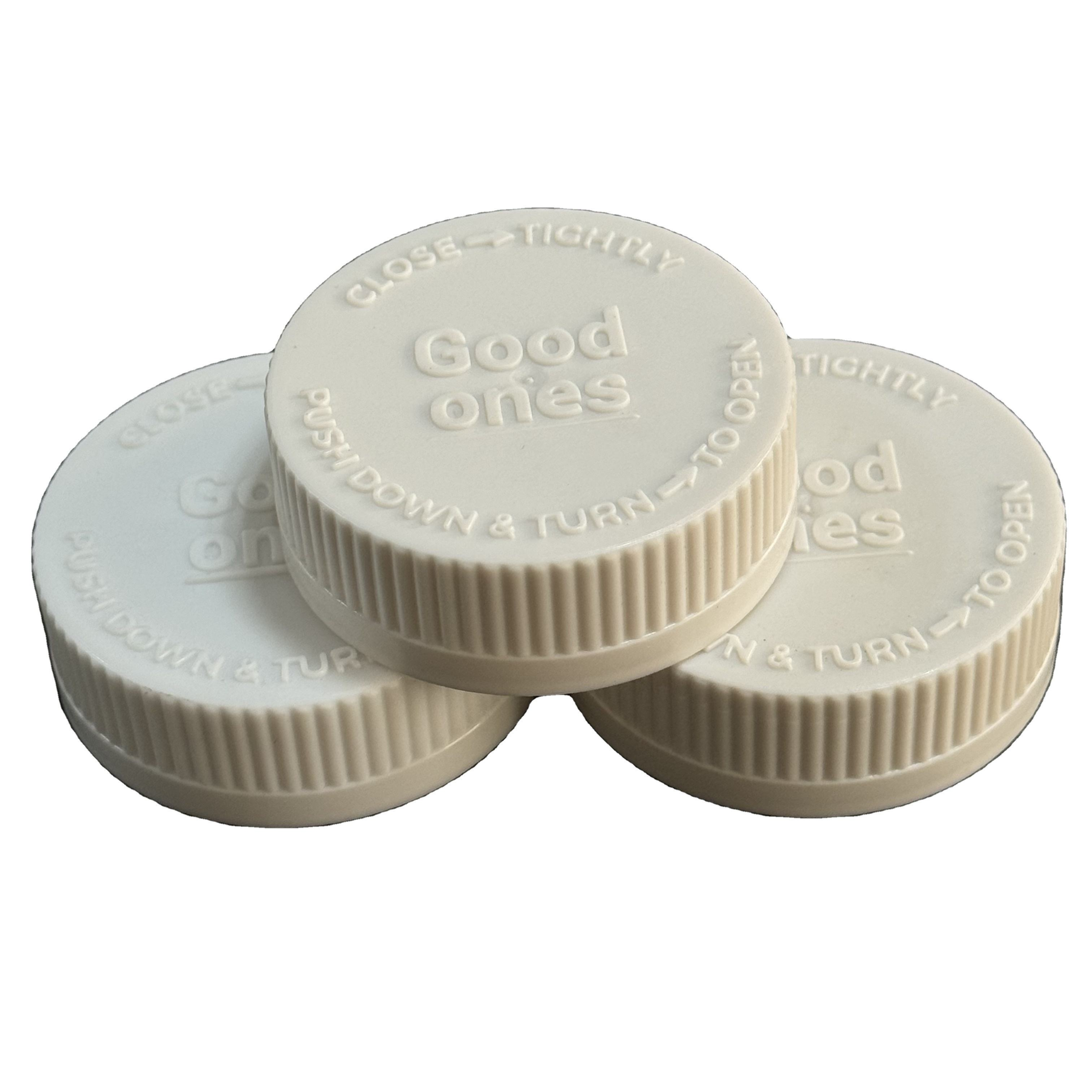

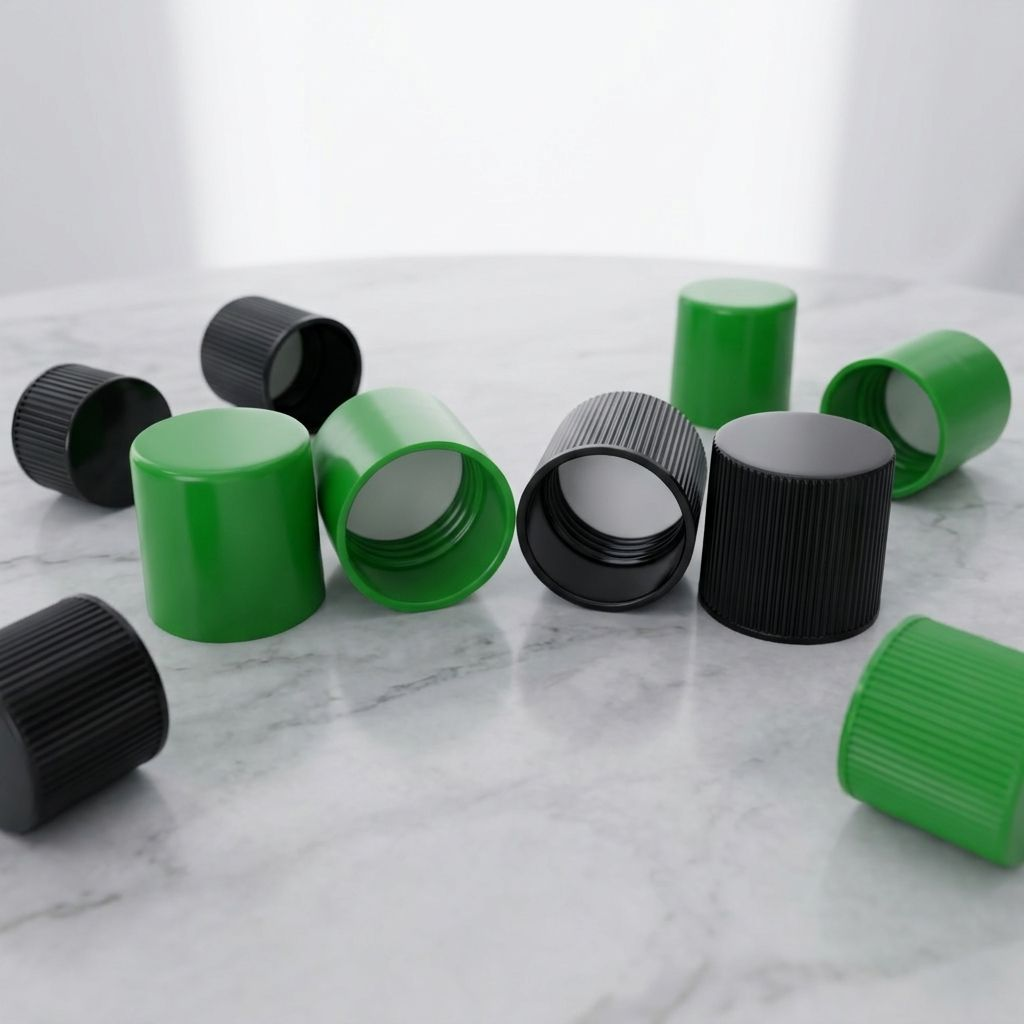

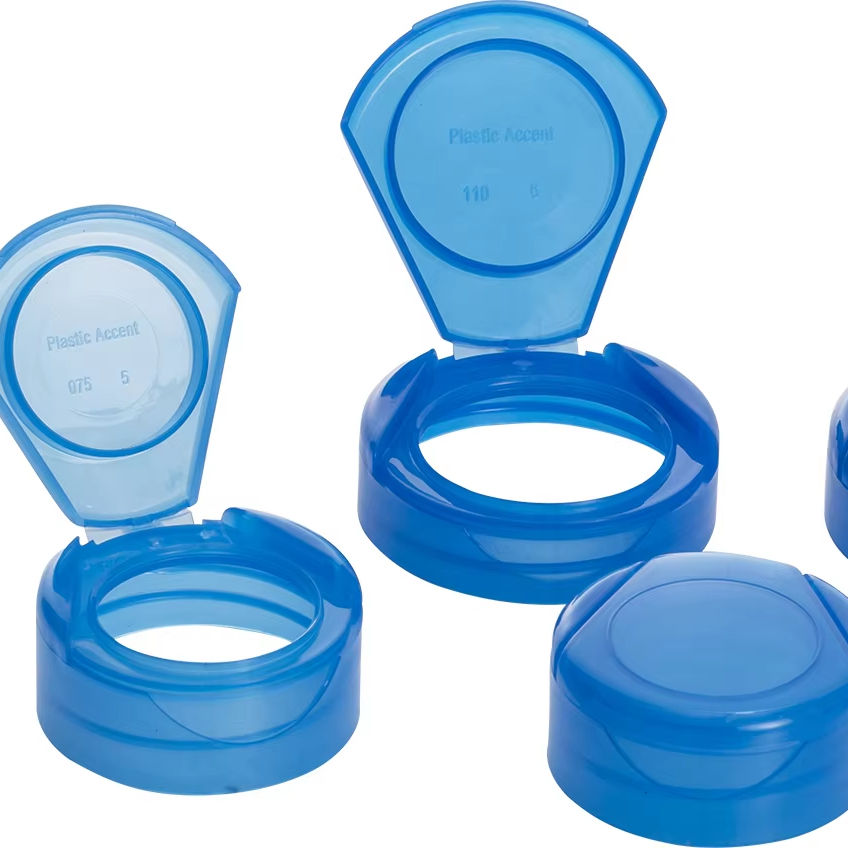

Tamper‑evident flip‑top caps for test kits. Ultra‑polished surfaces, 24‑48 cavities.
Medical caps require zero contamination, precise dosing, and child safety. Our moulds meet the most stringent regulatory demands.
Moulds manufactured under medical device quality management system.
Electropolished surfaces and low‑particulate design for ISO Class 7/8 cleanrooms.
Cavity variation < ±0.005 mm ensures perfect seal and child‑resistant function.
Push‑and‑turn or squeeze‑and‑turn mechanisms complying with ISO 8317.
Conformal cooling and hot runners achieve cycles as low as 5.8 seconds.
Each mould undergoes IQ/OQ/PQ documentation and leak testing.

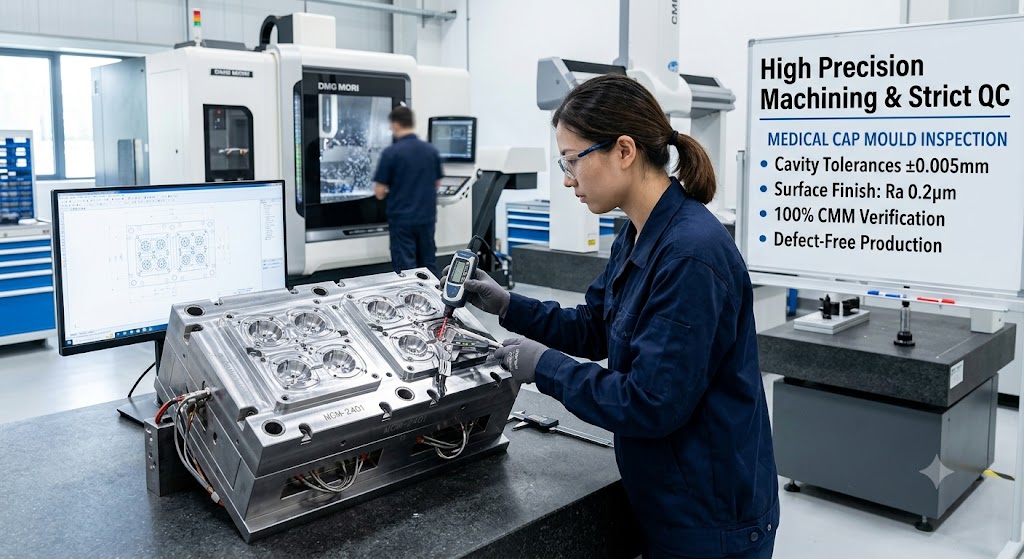

Every medical cap mould is produced with 5‑axis CNC machines achieving tolerances of ±0.005mm. ZEISS CMM inspection and full dimensional reports guarantee cavity‑to‑cavity consistency. Cleanroom‑compatible packaging and validation documentation included.

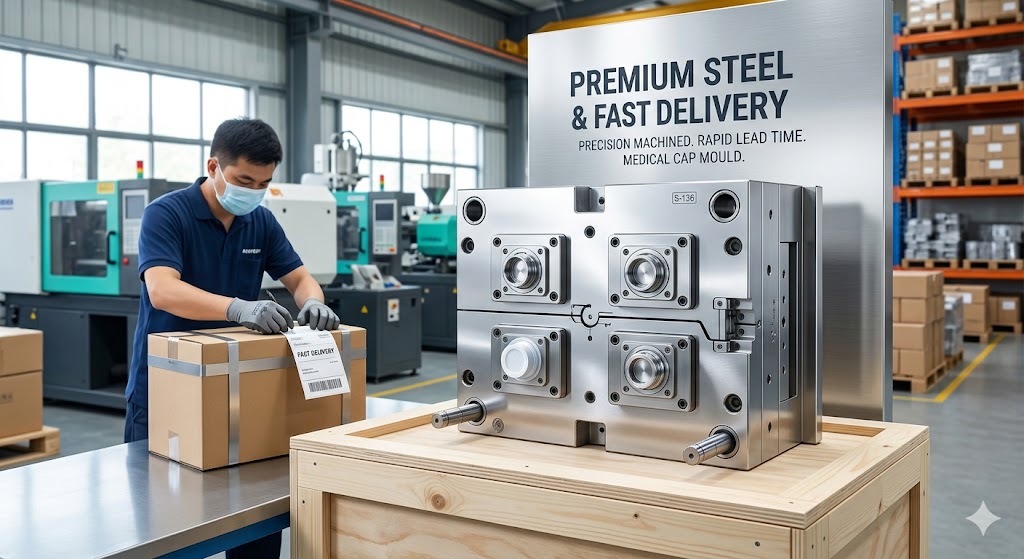

We exclusively use ASSAB S136, NAK80, or medical‑grade stainless steels with vacuum heat treatment to HRC 48‑52. Standard medical cap moulds are delivered in 35‑50 days; rush orders can be expedited to 28 days.

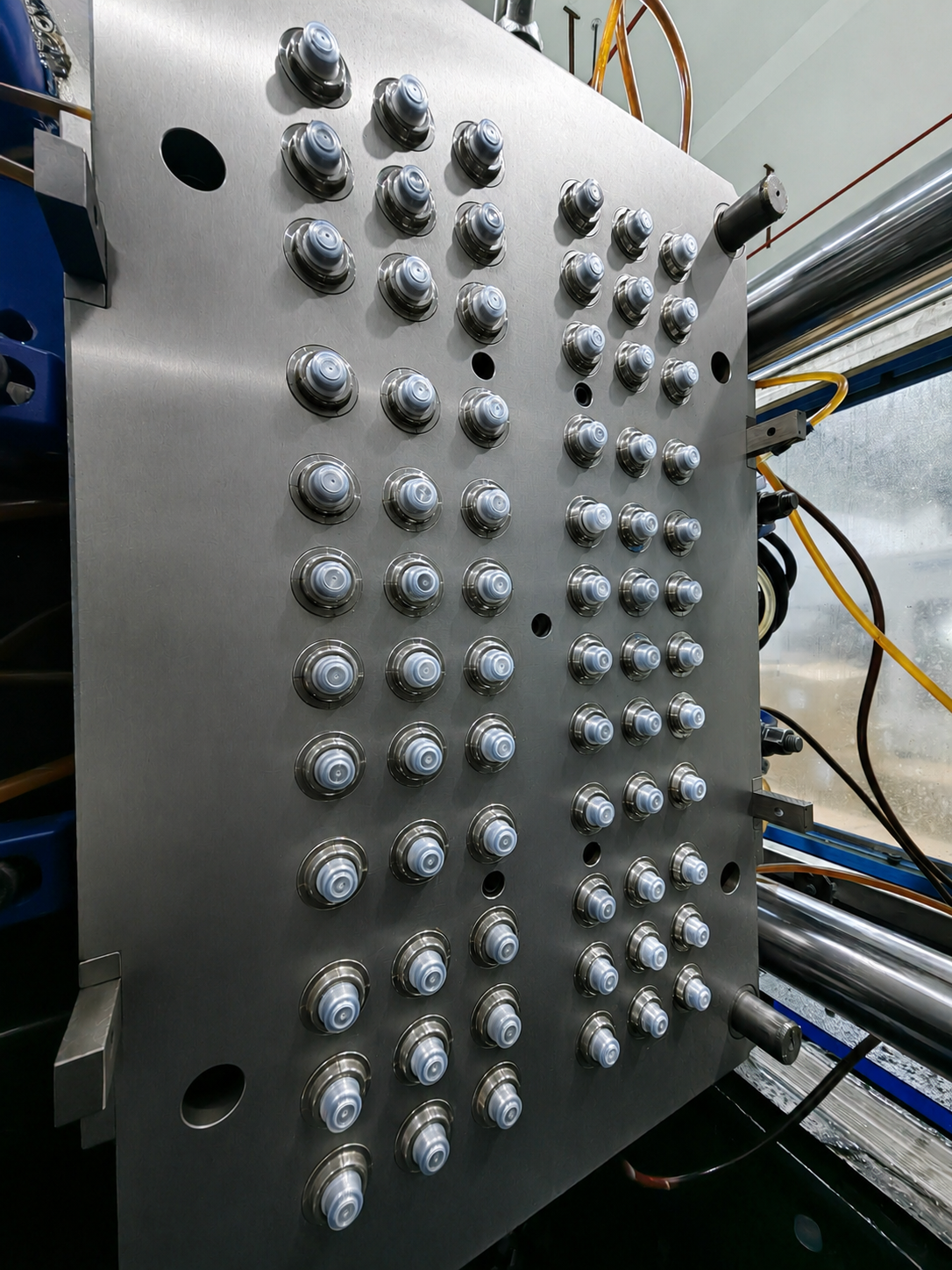

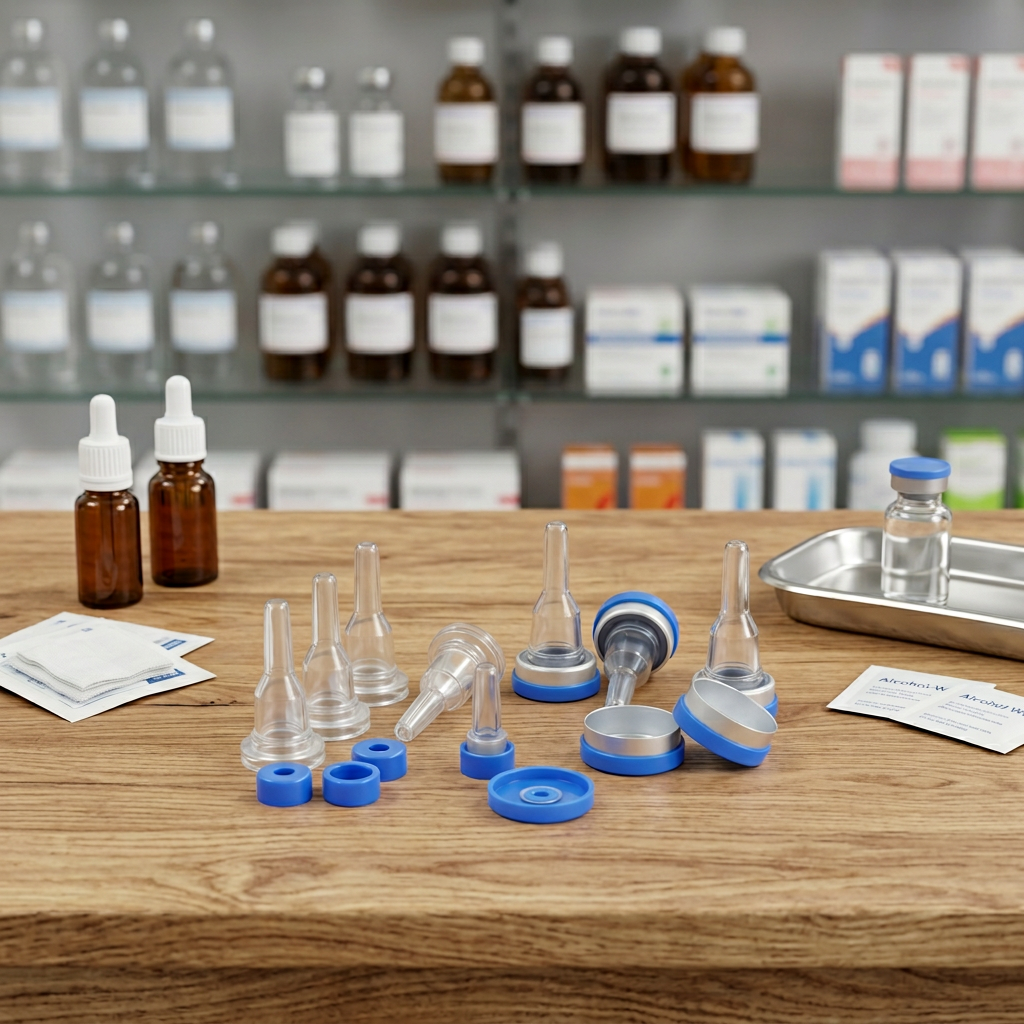

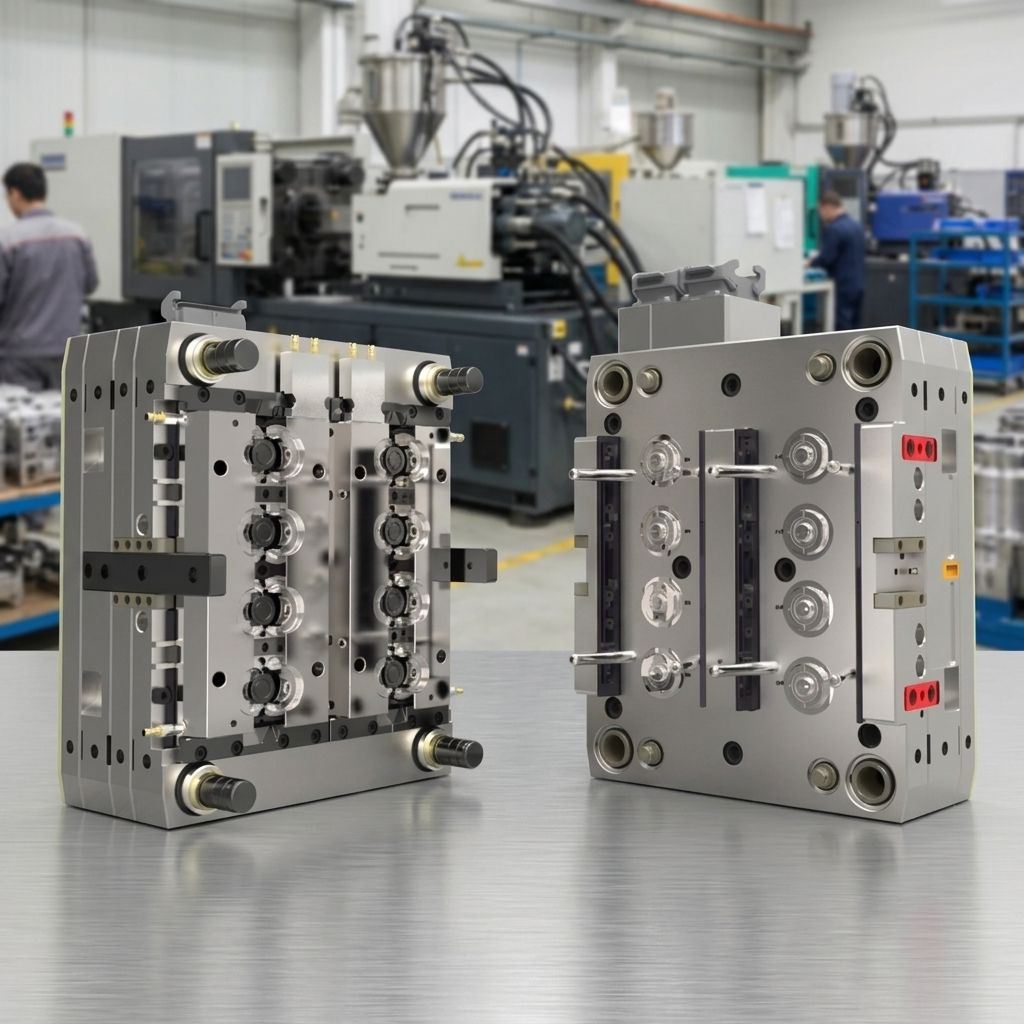

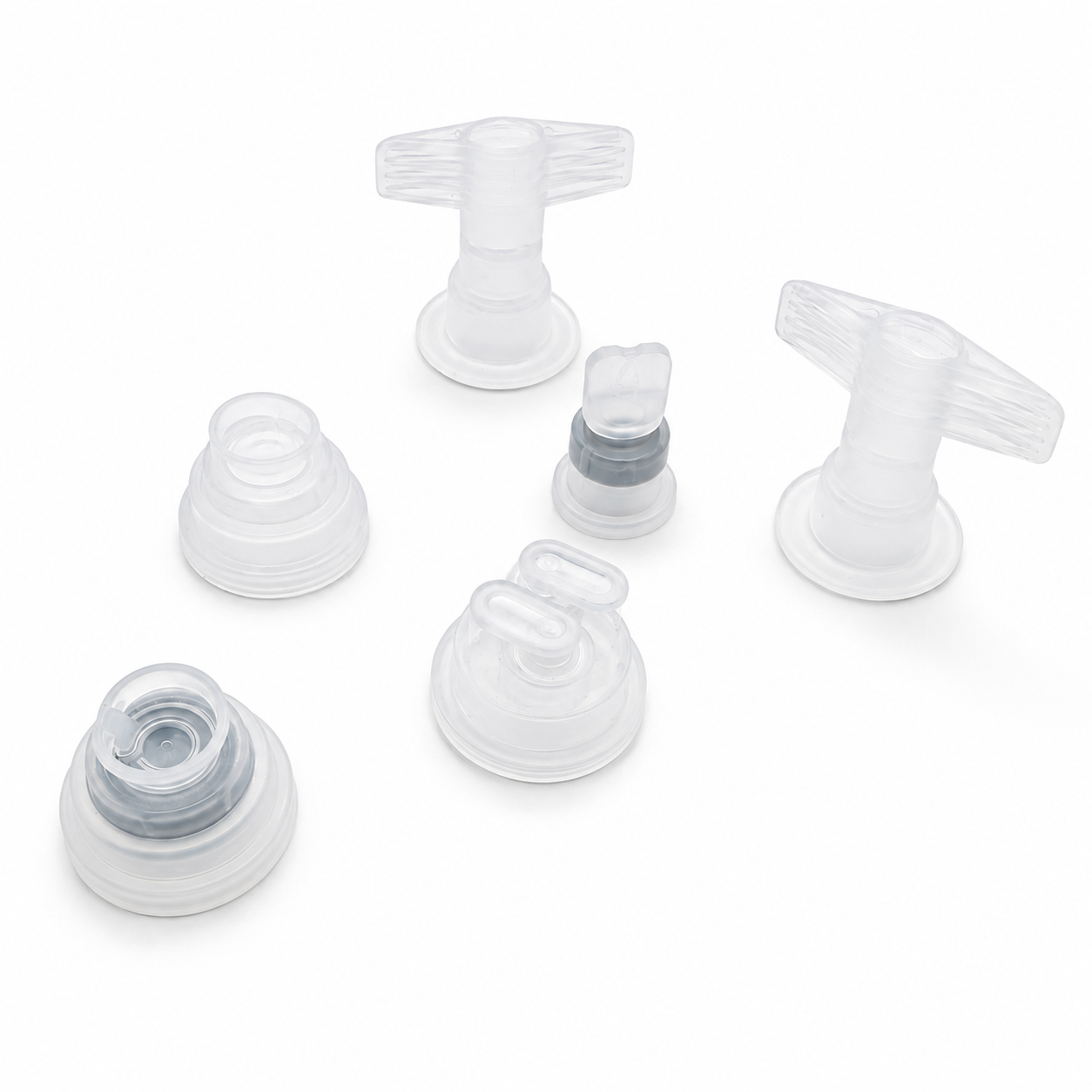

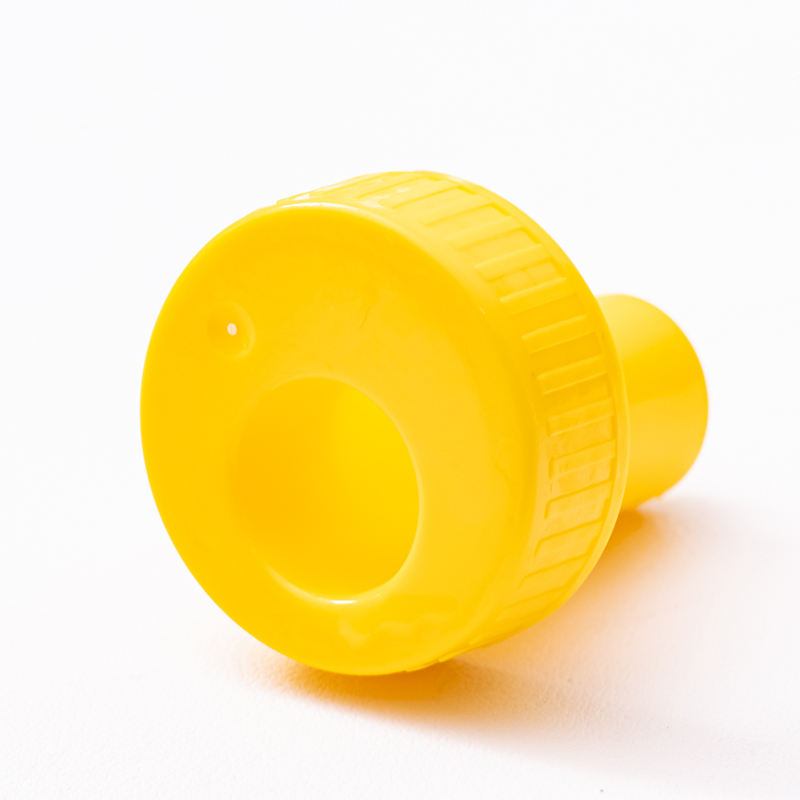

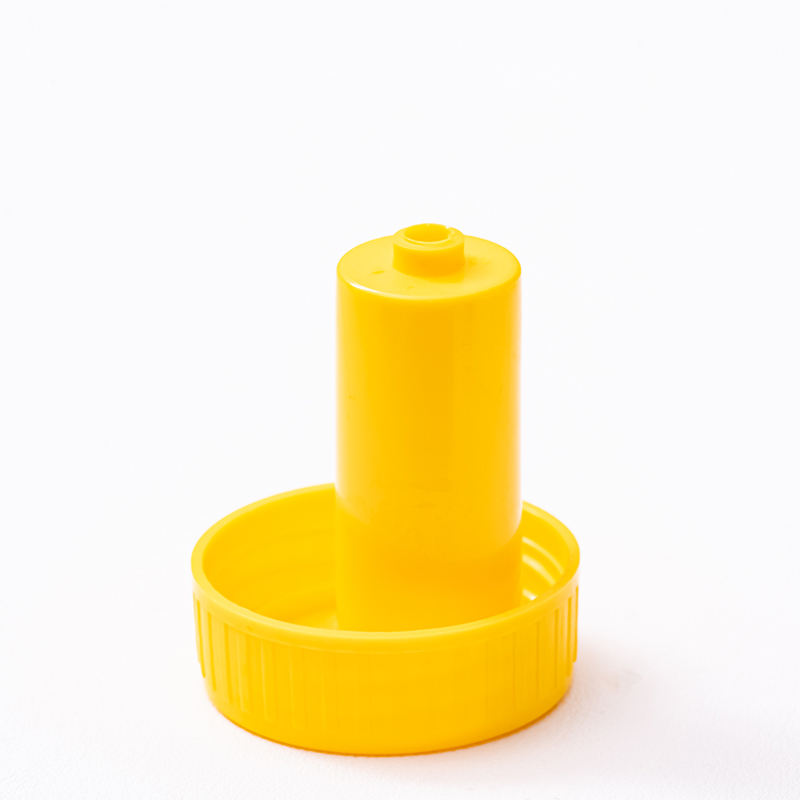

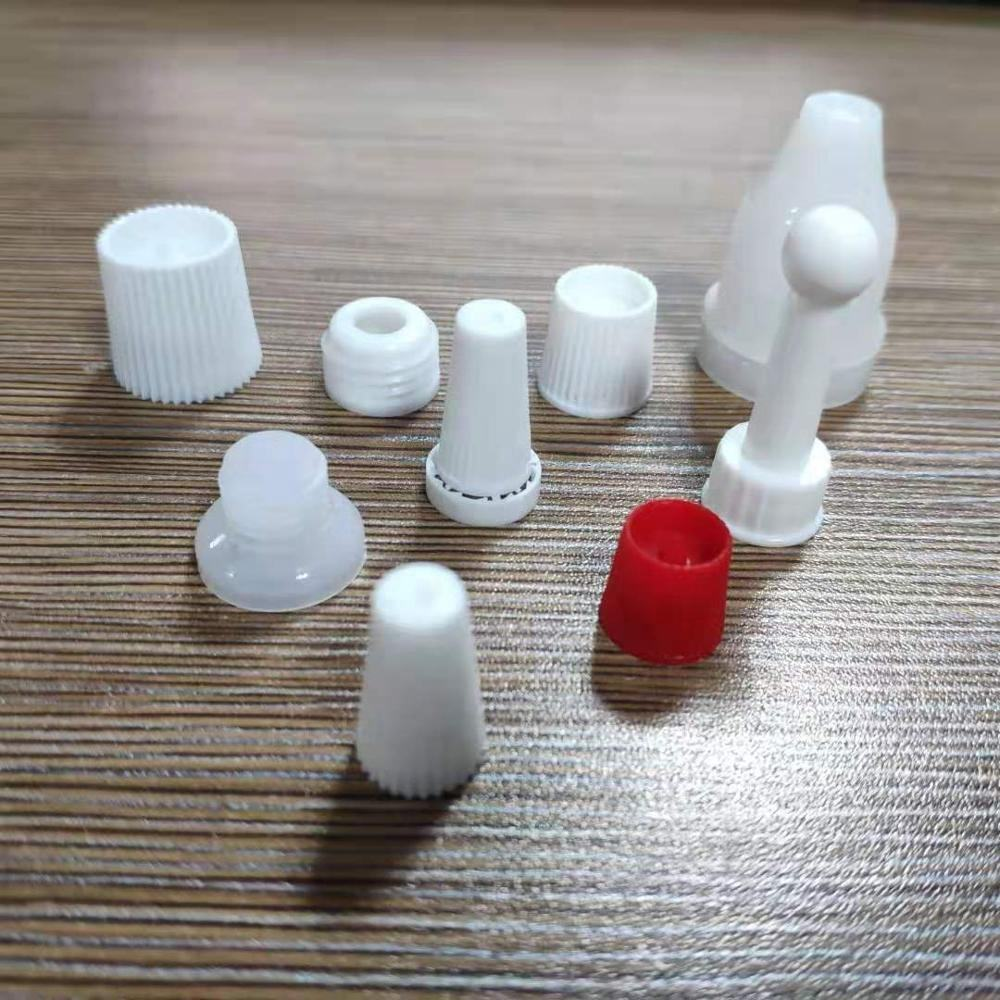

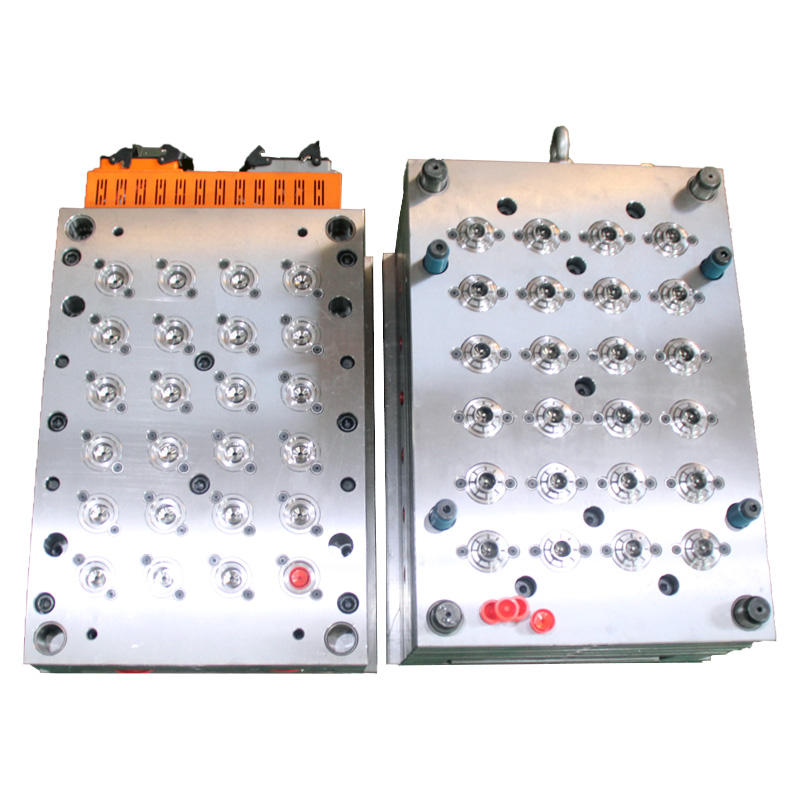

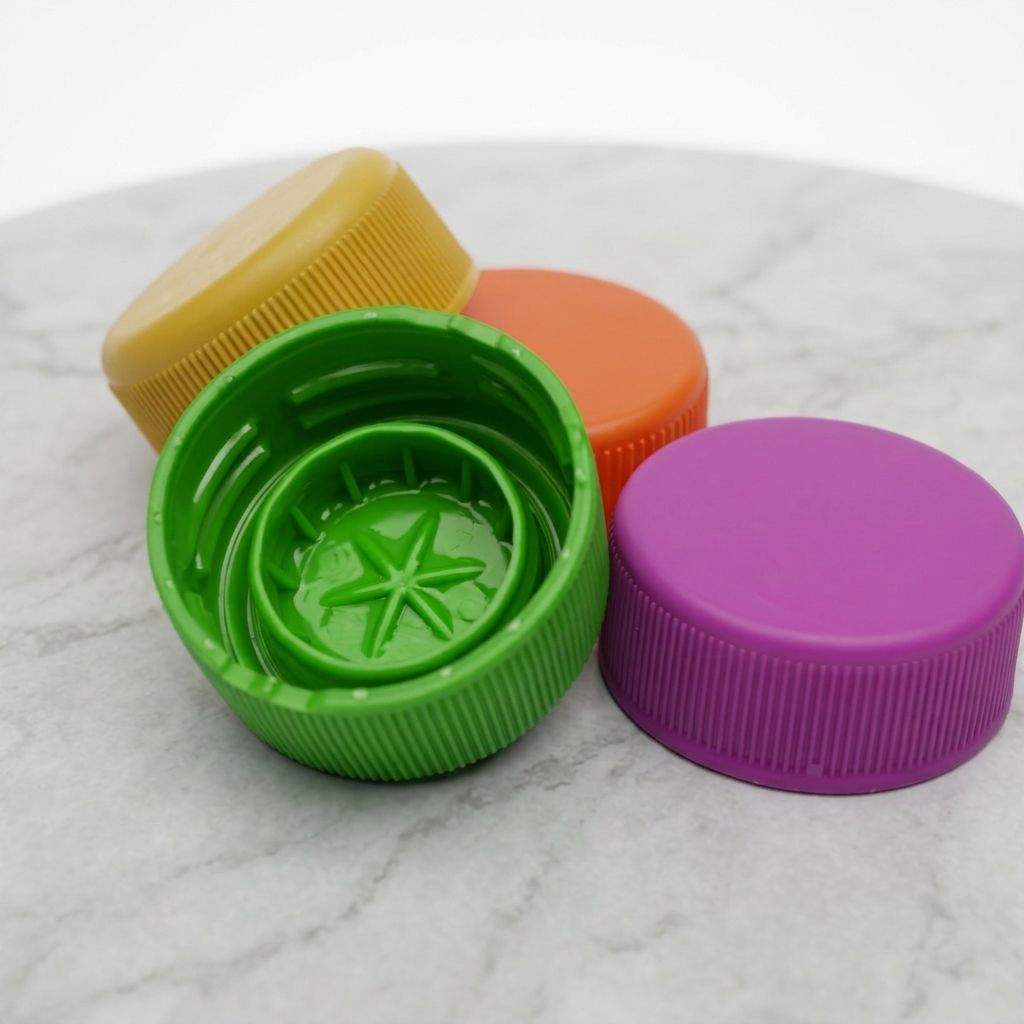

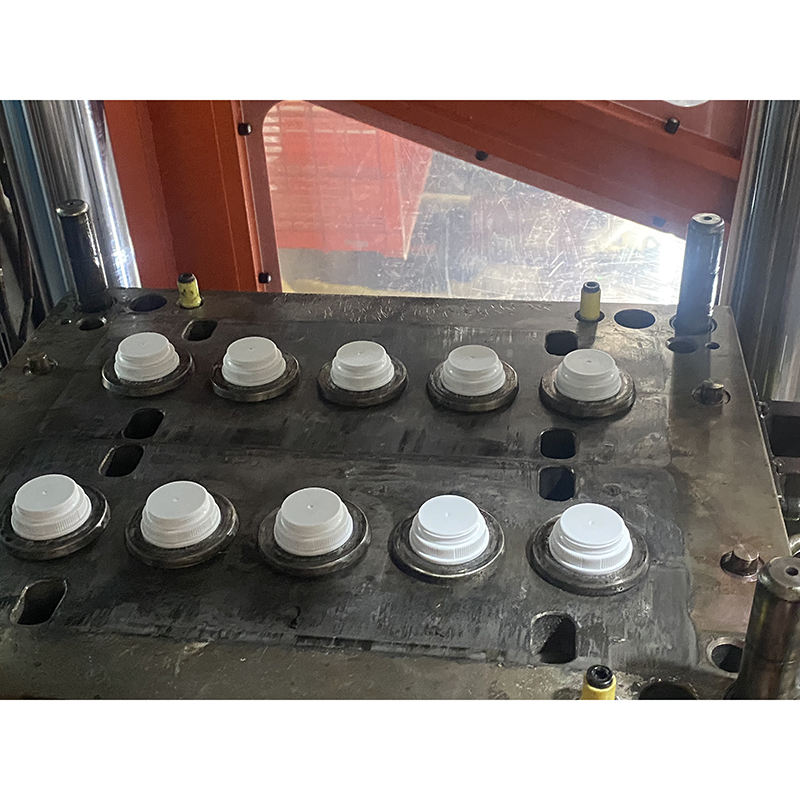

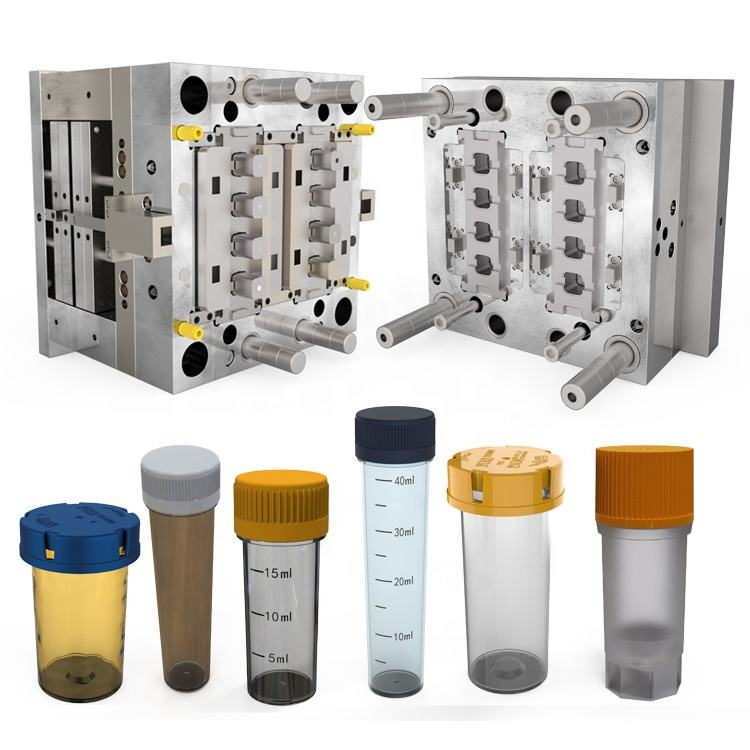

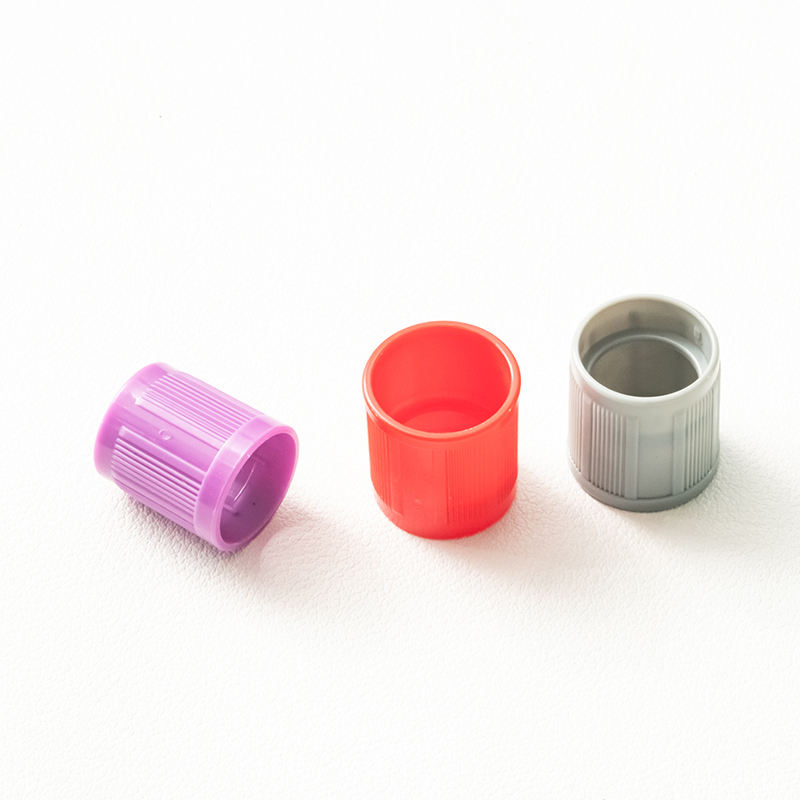

Click any image to enlarge. Real medical caps and mould details.
Every medical cap mould is fully validated with IQ/OQ/PQ protocols and undergoes rigorous testing.
Full dimensional report for all cavities.
Helium leak detection and torque testing.
Complete validation documentation provided.
Medical device quality management system.
Yes, our moulds are electropolished and designed for ISO Class 7/8 cleanrooms. Low‑particulate materials and full traceability.
Absolutely. We deliver complete validation documentation including installation qualification, operational qualification, and performance qualification.
Yes, we specialize in push‑and‑turn and squeeze‑and‑turn designs compliant with ISO 8317.
35‑50 days for standard medical cap moulds. Rush orders can be expedited to 28 days.
Dr. Sarah K., Quality Director, USA
Thomas M., Production Head, GermanySend us your cap drawing or sample for a free DFM analysis and quote. Response within 24 hours.
