Heavy‑duty injection moulds for plastic handles used on bottles, jerry cans, and containers. Engineered for high strength, wear resistance, and multi‑cavity production.
Request a Quote NowThree core handle mould categories to cover the vast majority of bottle and container handling needs.

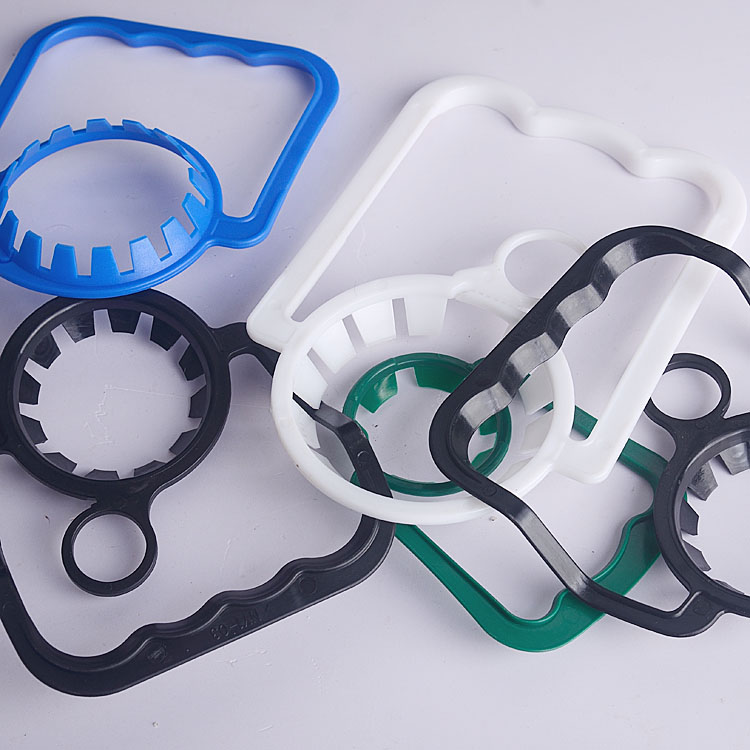

Handle mould is widely used for oil bottle and water bottle .The usually specification is from 1L to 20 L. There has some round type for catching the bottle part and the size type
Learn More →
Handle mould is widely used for oil bottle and water bottle .The usually specification is from 1L to 20 L. There has some round type for catching the bottle part and the size type
Learn More →
Handle mould is widely used for oil bottle and water bottle .The usually specification is from 1L to 20 L. There has some round type for catching the bottle part and the size type
Learn More →
Handle mould is widely used for oil bottle and water bottle .The usually specification is from 1L to 20 L. There has some round type for catching the bottle part and the size type
Learn More →
We are able to produce all type of Plastic Caps & Handle & Preform in very kind of bottle usages from Beverage to Pharma industries. As we have too much neck dimension, please contact us about your exa...
Learn More →
We are able to produce all type of Plastic Caps & Handle & Preform in very kind of bottle usages from Beverage to Pharma industries. As we have too much neck dimension, please contact us about your exa...
Learn More →Plastic handles must endure constant load, frequent lifting, and rough handling. Our moulds are built to exceed these demands.
Reinforced gate and wall thickness design prevents breakage under heavy loads.
H13 / S136 steel with hardening for a mould life over 3 million cycles.
Optimized cooling and hot runners achieve cycles as low as 6 seconds.
Cavity variation < ±0.01 mm ensures consistent handle fit and function.
Interchangeable inserts allow quick cavity expansion or style change.
Every mould undergoes load tests and full dimensional inspection.

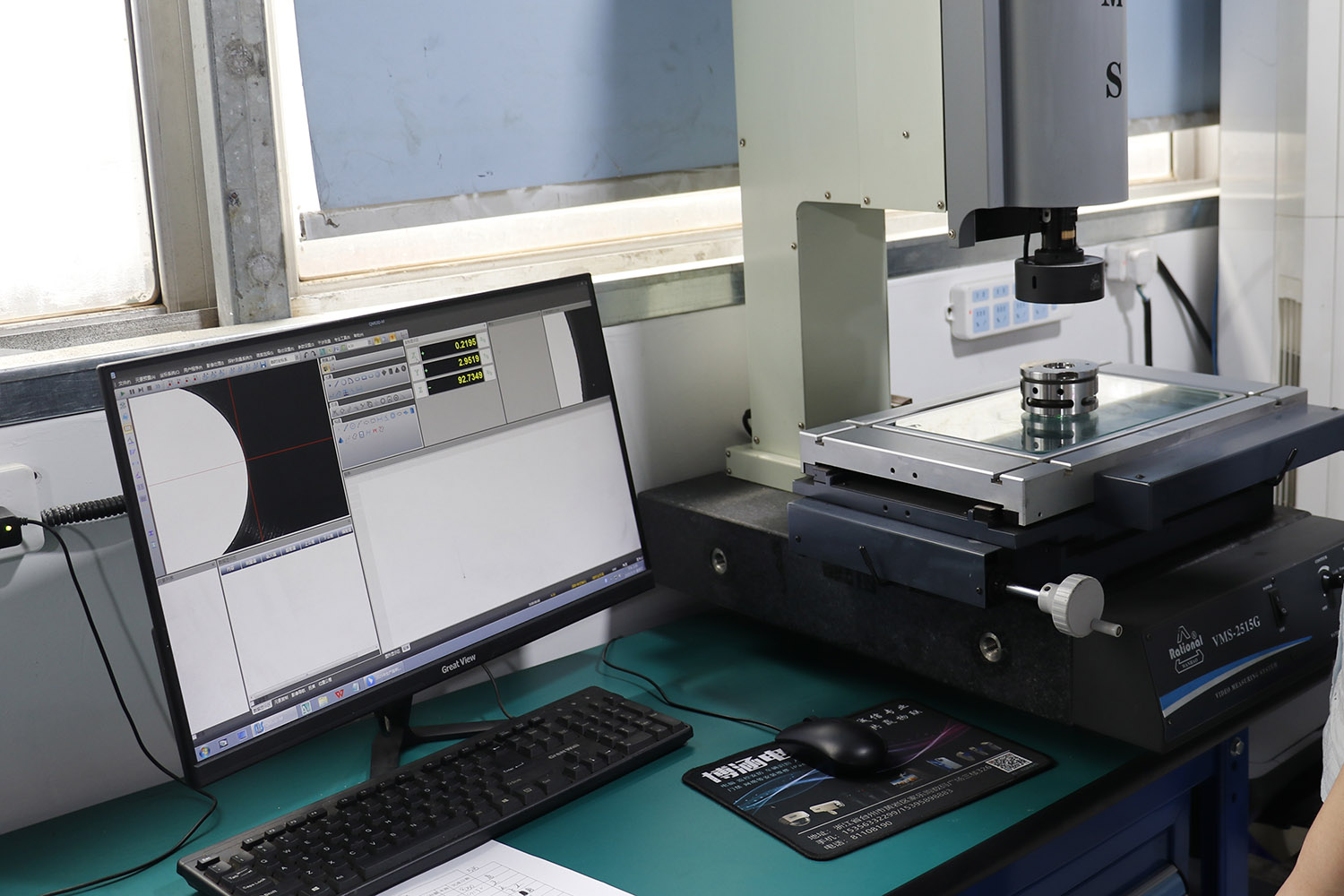

Every cap mould is produced with 5‑axis CNC machines achieving tolerances of ±0.005mm. ZEISS CMM inspection and full dimensional reports guarantee cavity‑to‑cavity consistency. Each mould undergoes rigorous trial runs and leak tests before shipment.

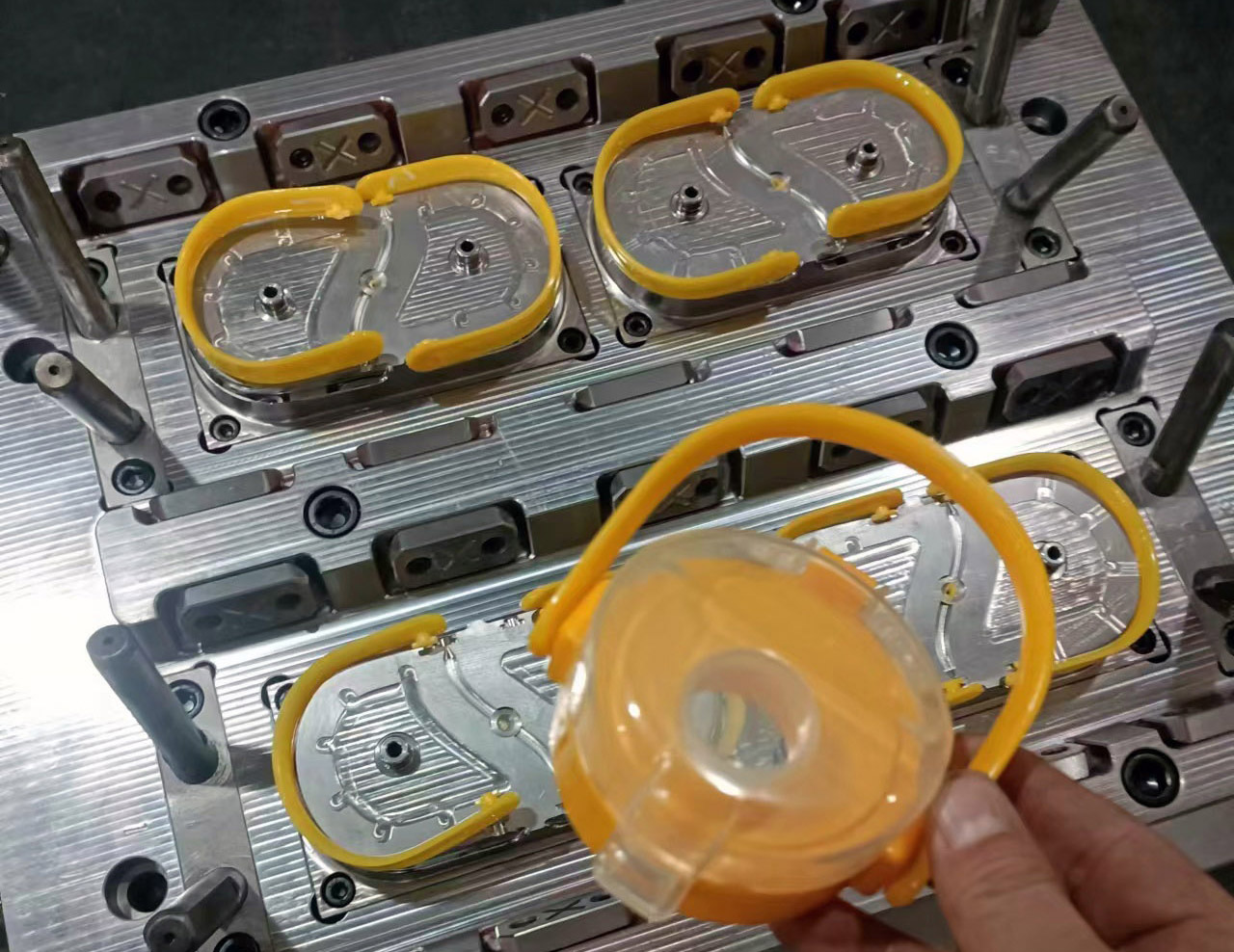

We exclusively use ASSAB S136, NAK80, or H13 steels with vacuum heat treatment to HRC 48‑52, ensuring a mould life of 3‑5 million cycles. Standard cap moulds are delivered in 30‑45 days; rush orders can be expedited to 25 days.

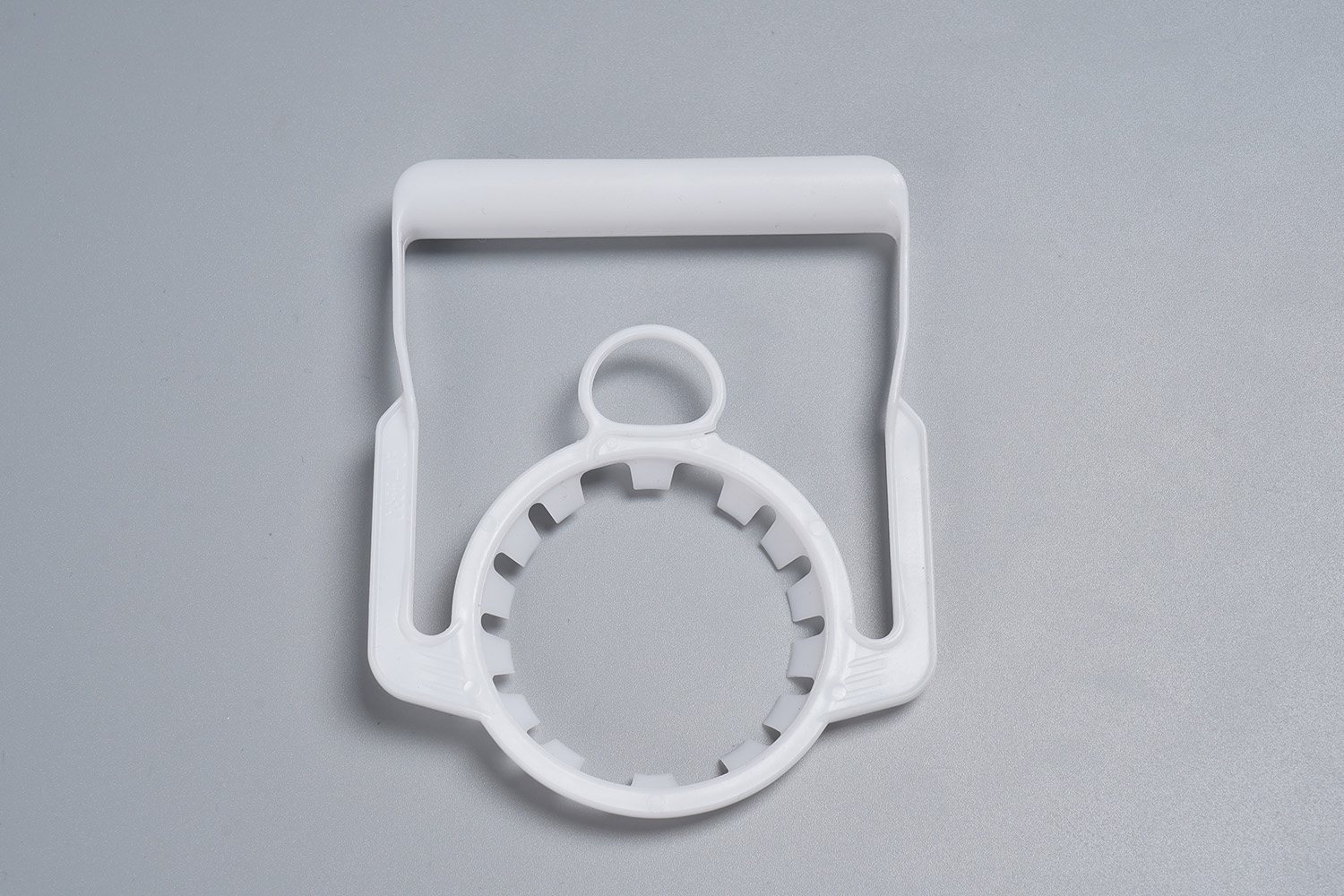

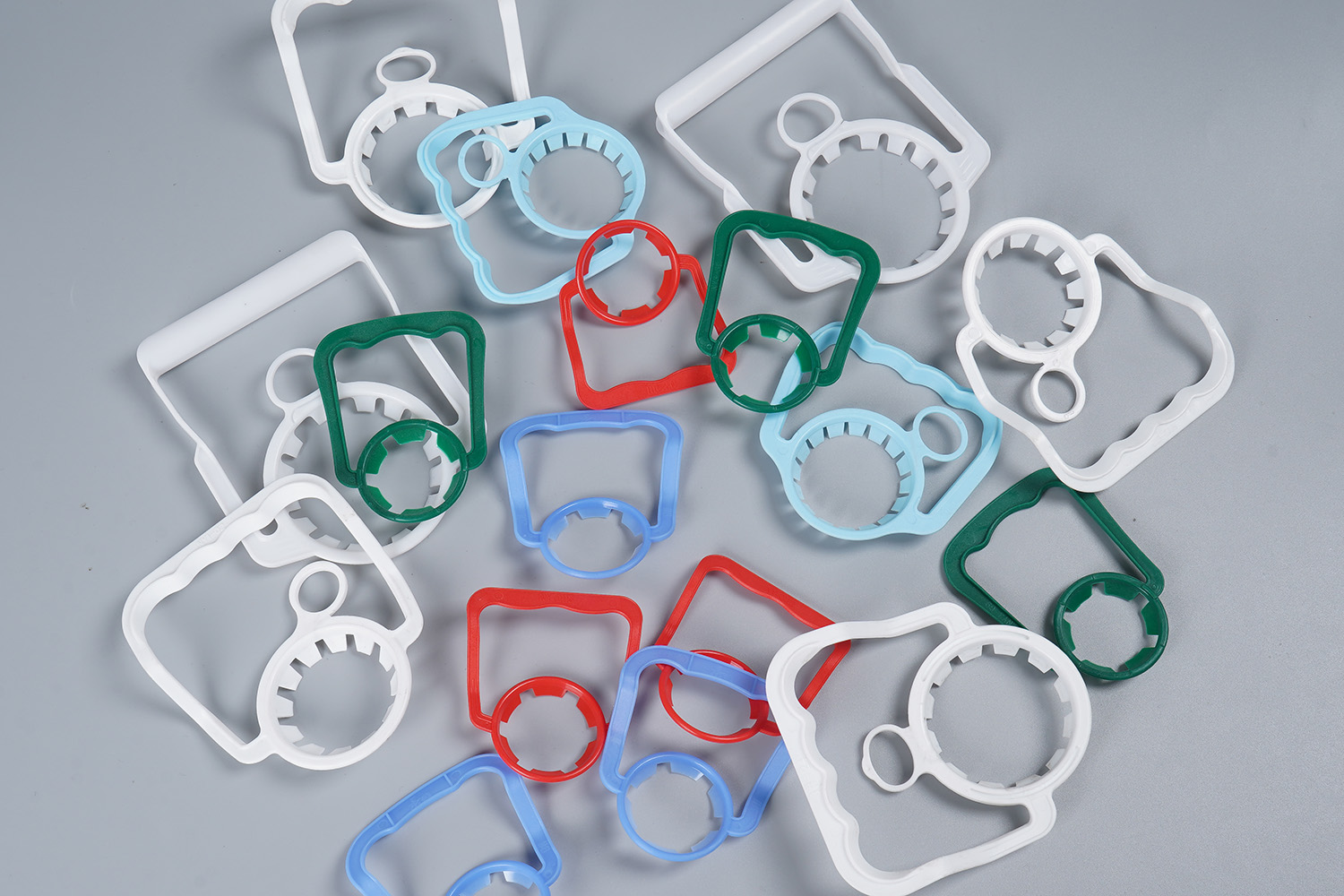

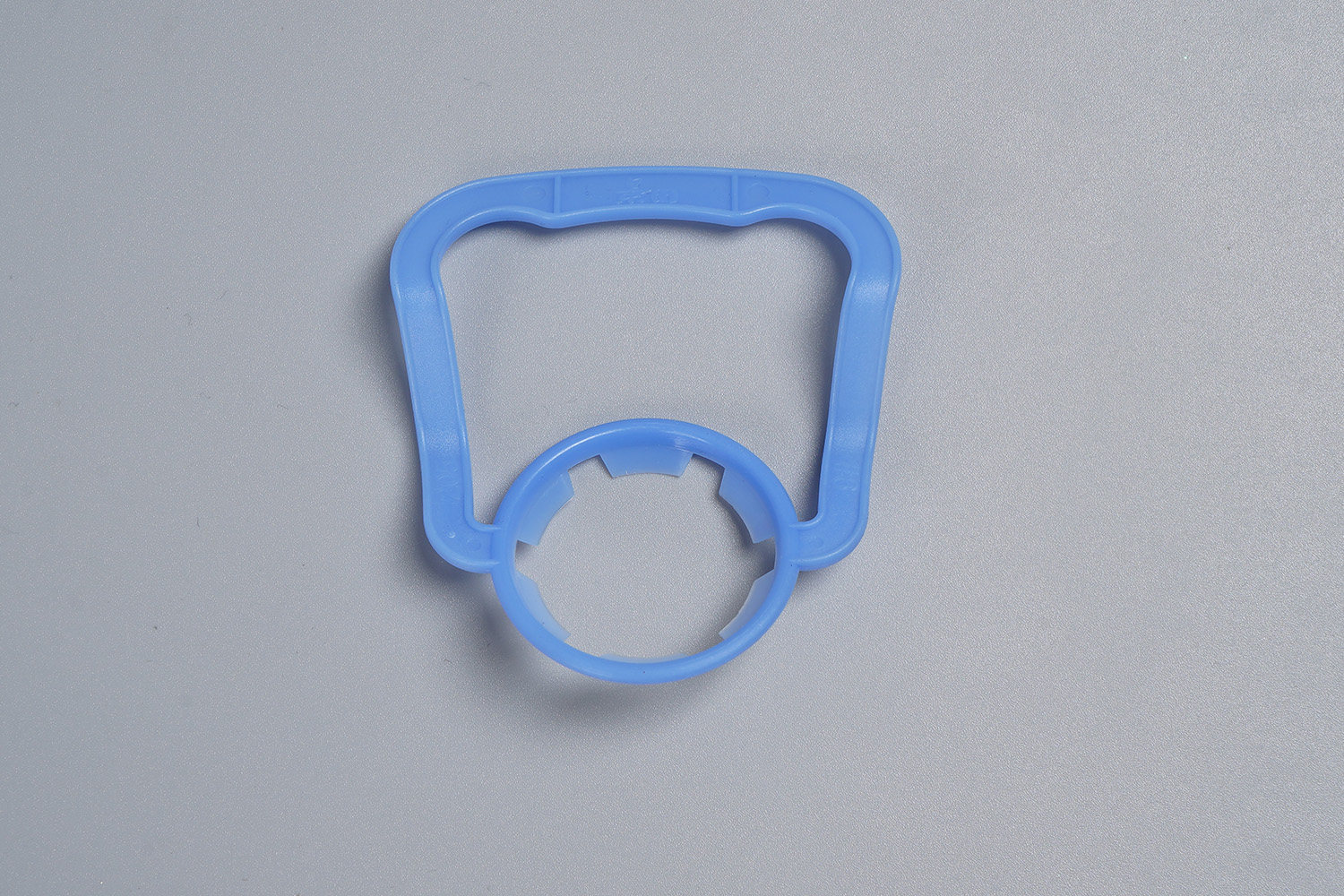

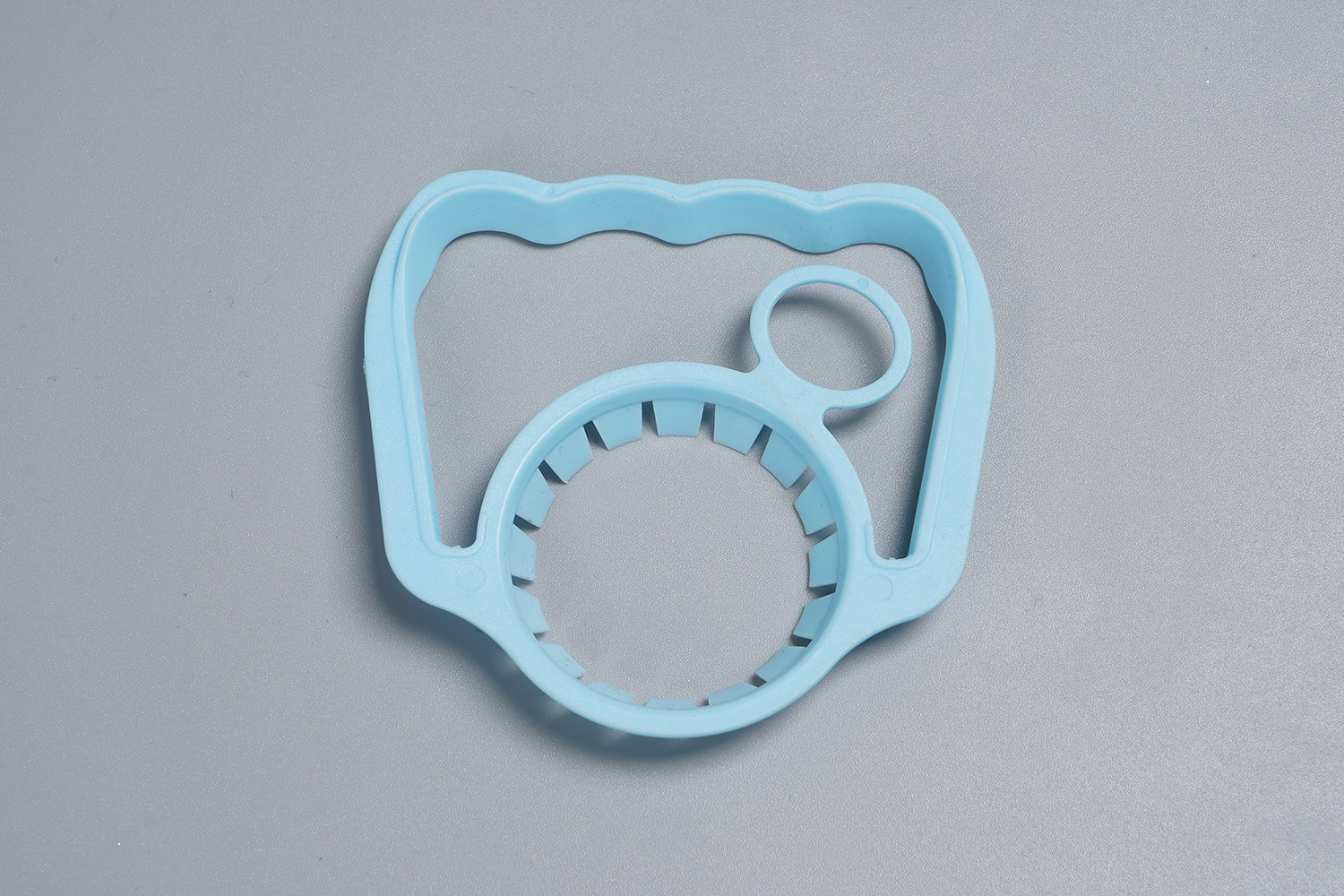

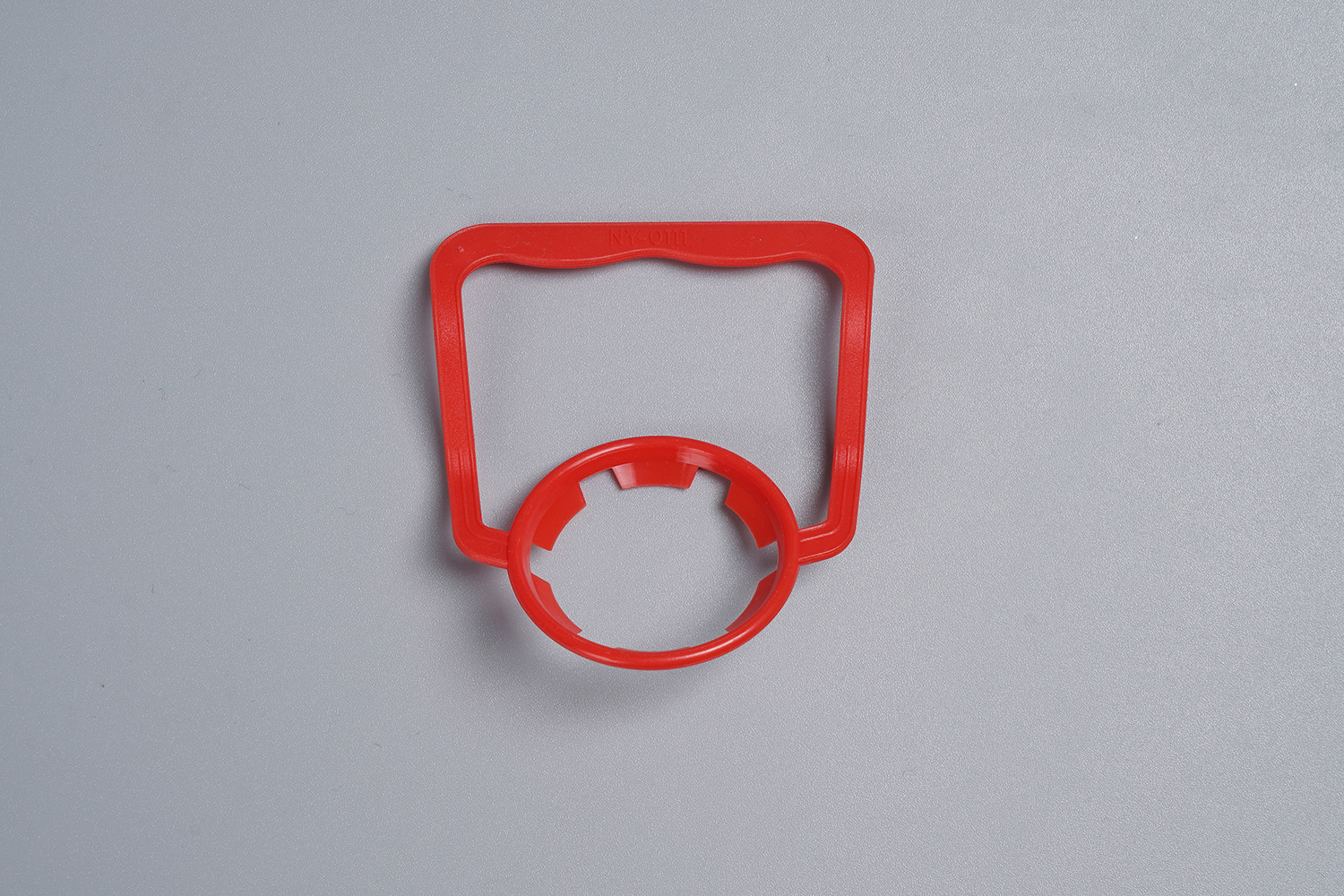

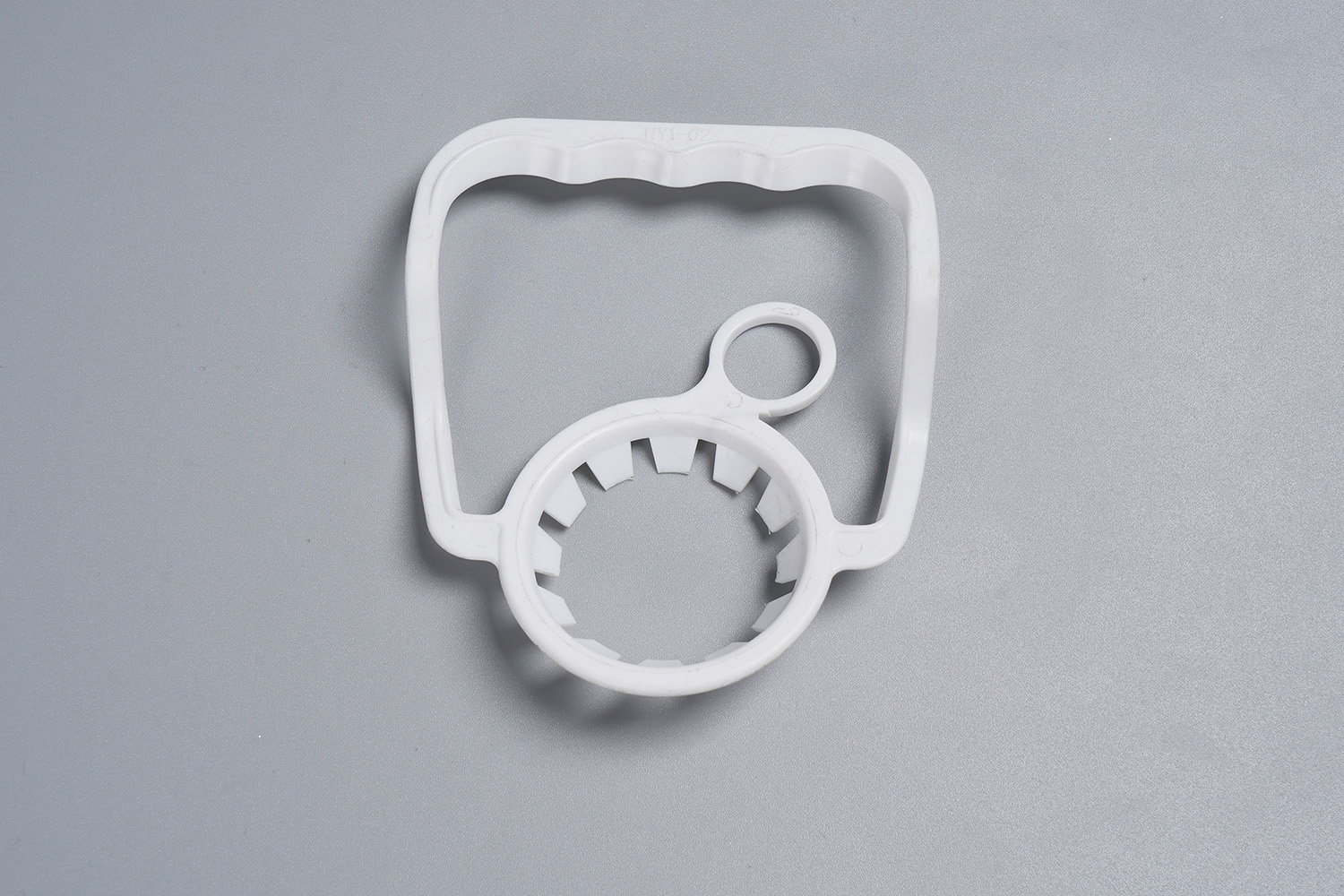

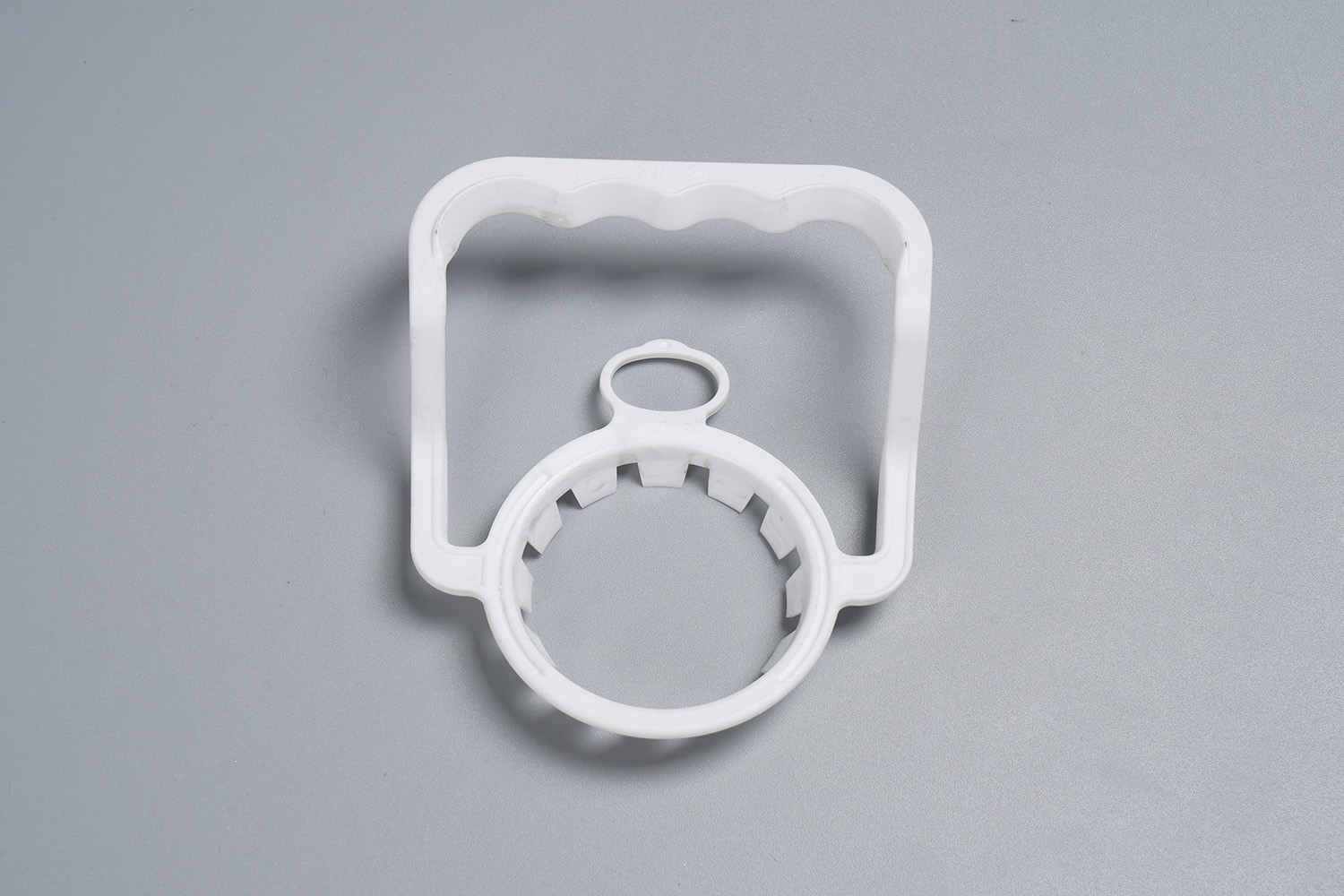

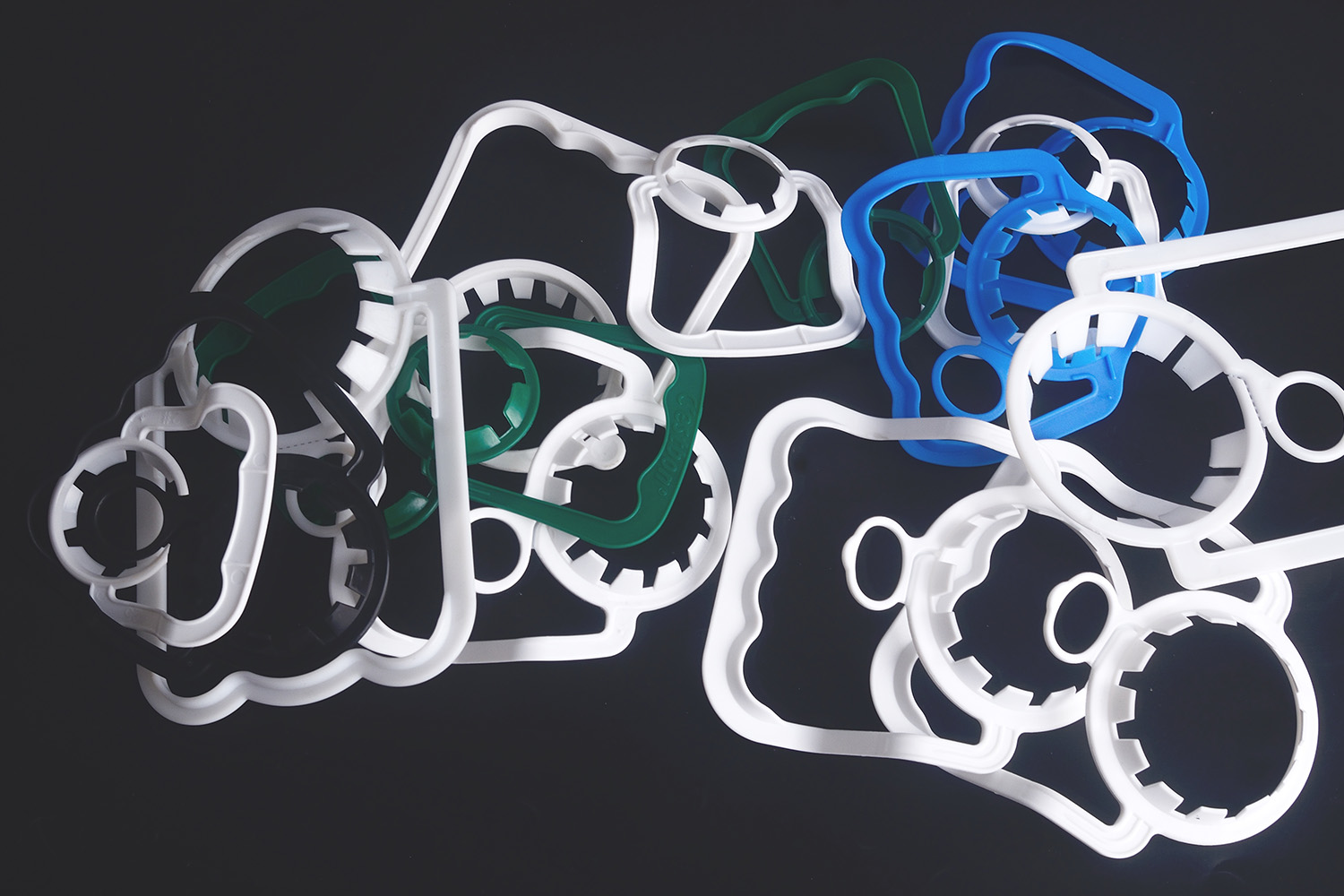

Click any image to enlarge. Real handles and mould details.
Click to watch full‑screen. Witness the speed and reliability of our handle moulds.
Every handle mould undergoes load testing and full dimensional inspection before delivery.
Full dimensional report for all cavities.
Static and dynamic load tests up to 50kg.
Ensuring uniform material distribution.
Quality management system in place.
We typically use H13 or S136 steel hardened to HRC 48‑52 for excellent wear resistance and long life.
We perform Moldflow analysis to optimize weld line strength, and every mould undergoes a load test before shipment.
Yes, send your 3D file or physical sample, and we will design and manufacture accordingly.
With proper maintenance, our handle moulds exceed 3 million cycles.
Rajiv S., Production Head, India
Elena G., Engineering Manager, MexicoSend us your handle design or sample for a free DFM analysis and quote. Response within 24 hours.
