Precision injection moulds for sport caps, push‑pull closures, and complex combination caps. Leak‑proof, durable, and designed for high‑output assembly lines.
Request a Quote NowThree core mould categories for multi‑functional closures — sport caps, push‑pull, and complex combination assemblies.

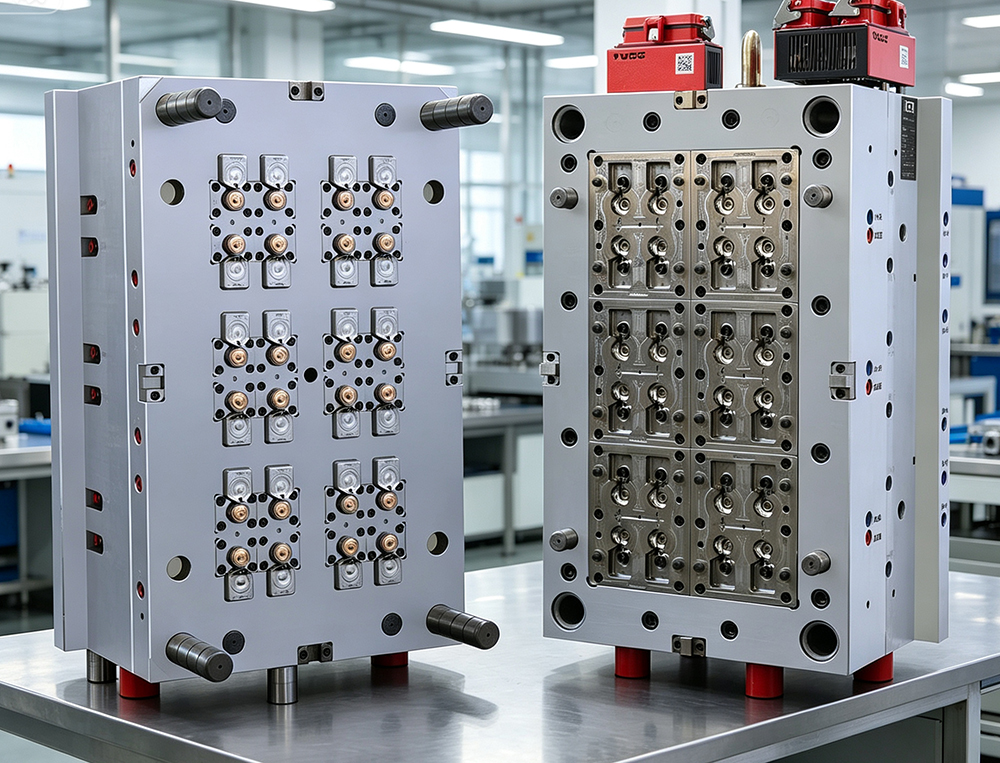

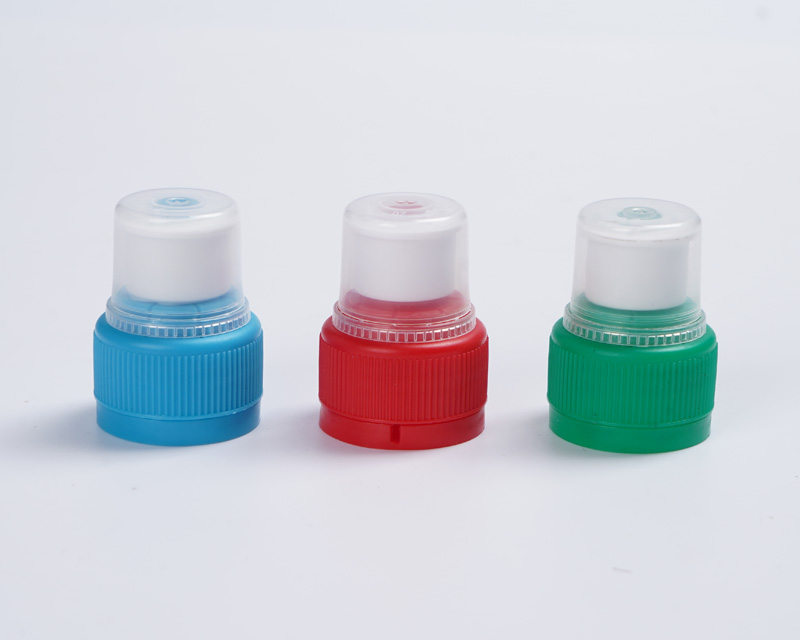

For water and sports drink bottles. One‑hand operation, leak‑proof valve, 48 cavities, cycle time 6.2s.

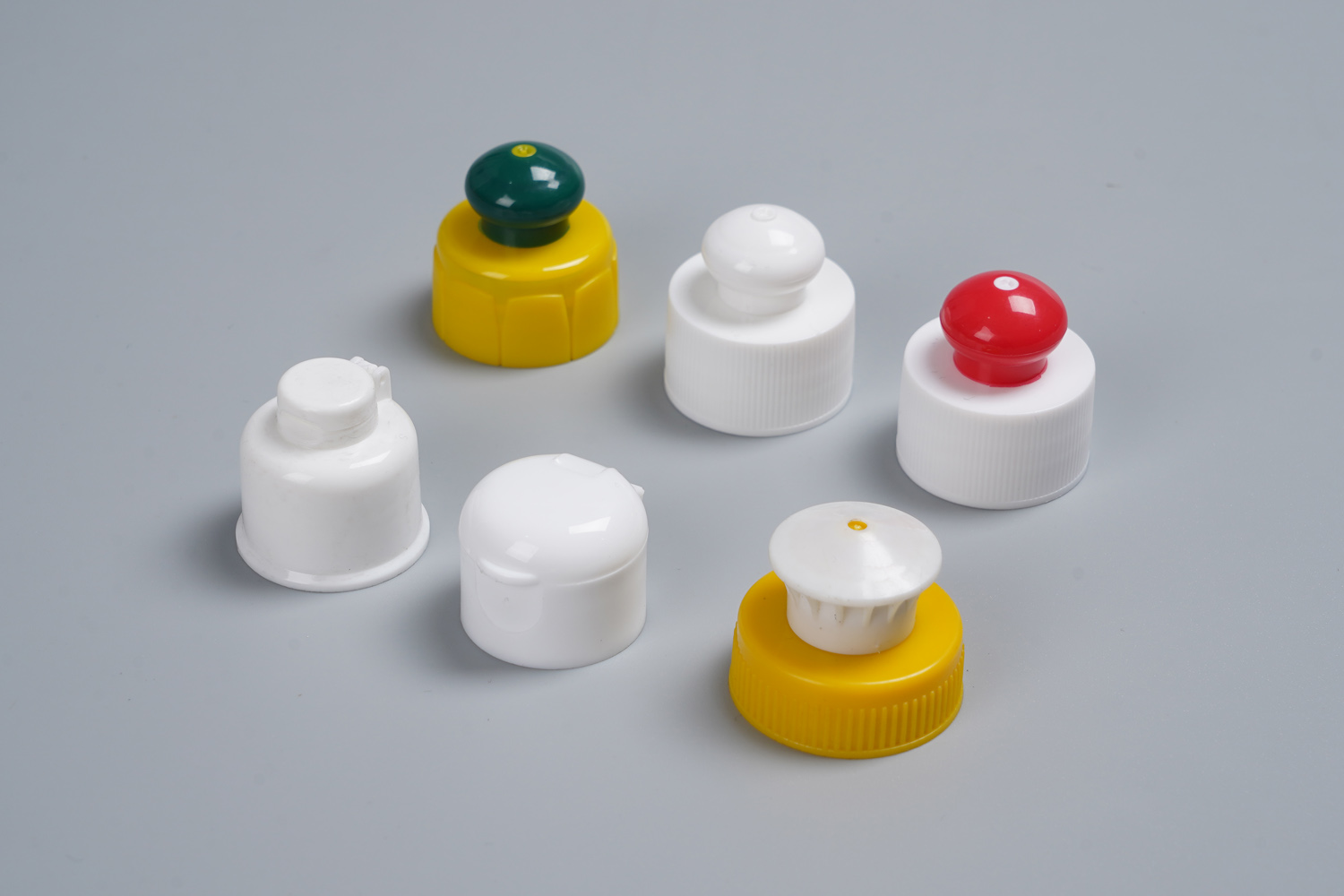

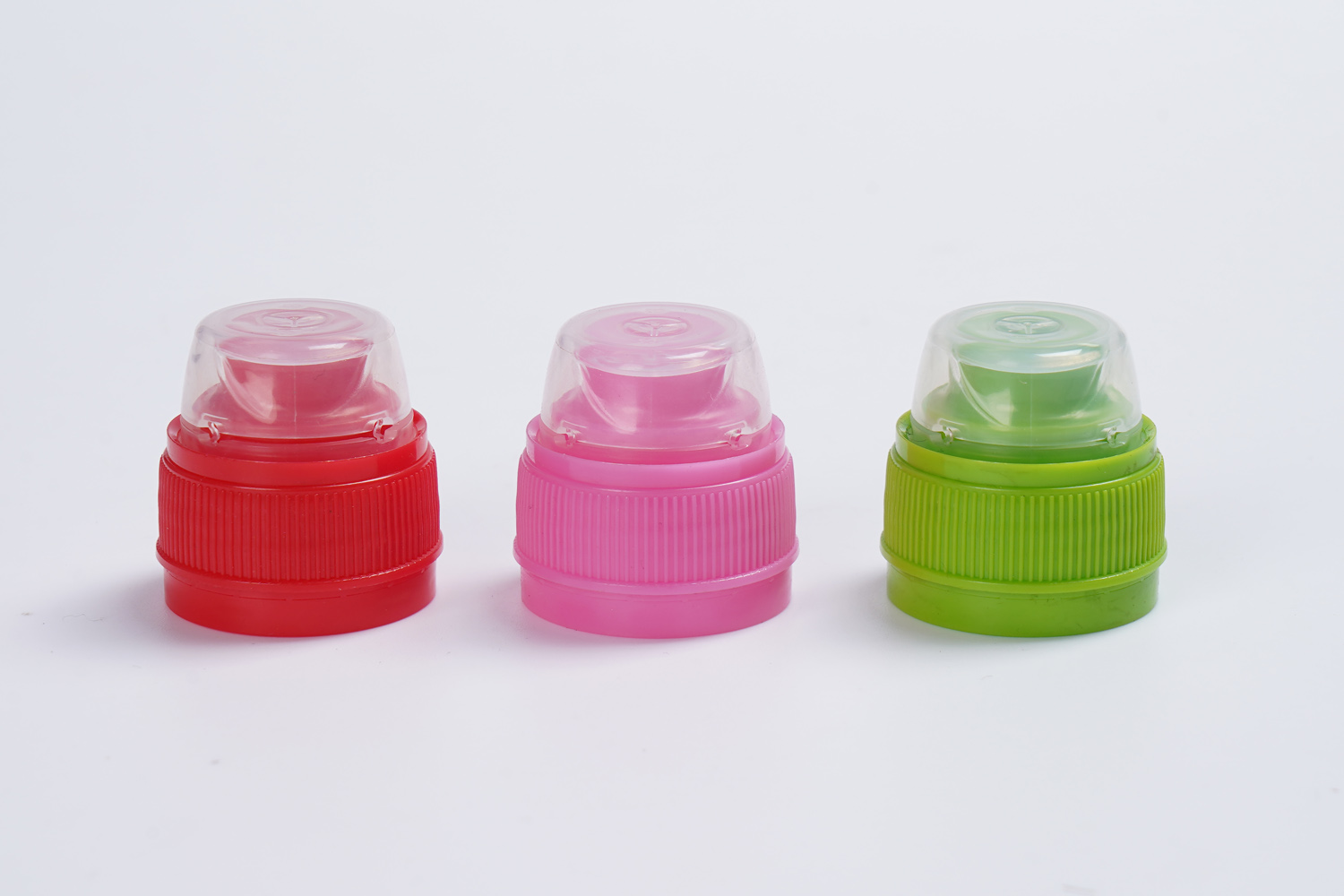

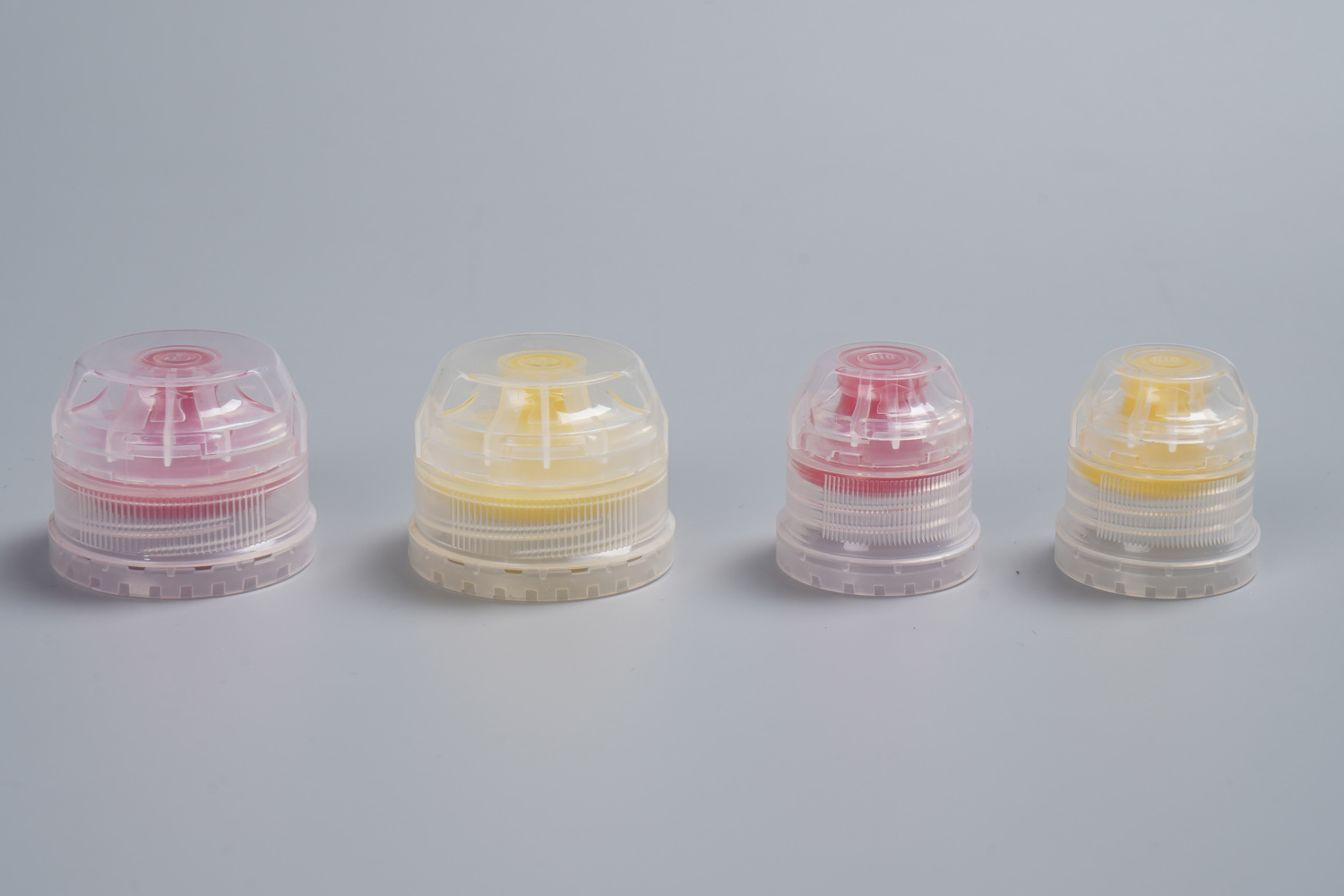

Flip‑top + tamper band, or disc‑top + overcap. Two‑shot or assembly‑ready, up to 32 cavities.

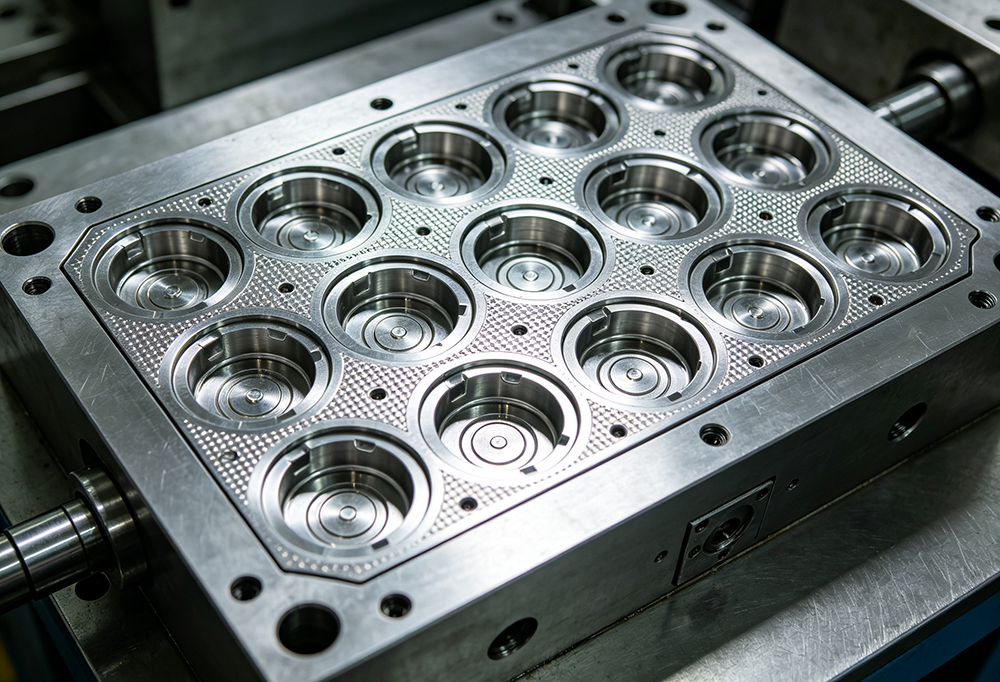

Dual‑material caps for premium look and function. Rotary platen or core‑back design, 24‑48 cavities.
Functional caps require precise interaction of multiple parts. Our moulds deliver flawless assembly fit and reliable end‑user performance.
Micron‑level alignment ensures perfect fit between cap body, valve, and overcap.
Optimized silicone valve geometry prevents leakage during sports use.
Push‑pull and flip‑top mechanisms engineered for consistent torque and tactile feedback.
Cavity variation < ±0.01 mm guarantees identical cap performance across all cavities.
Conformal cooling and balanced hot runners achieve cycles as low as 6.2 seconds.
Interchangeable core/cavity inserts for quick product changeovers.
With over 15 years of specialization in cap mould engineering, we deliver precision tooling that exceeds industry benchmarks for complex multi‑component closures.

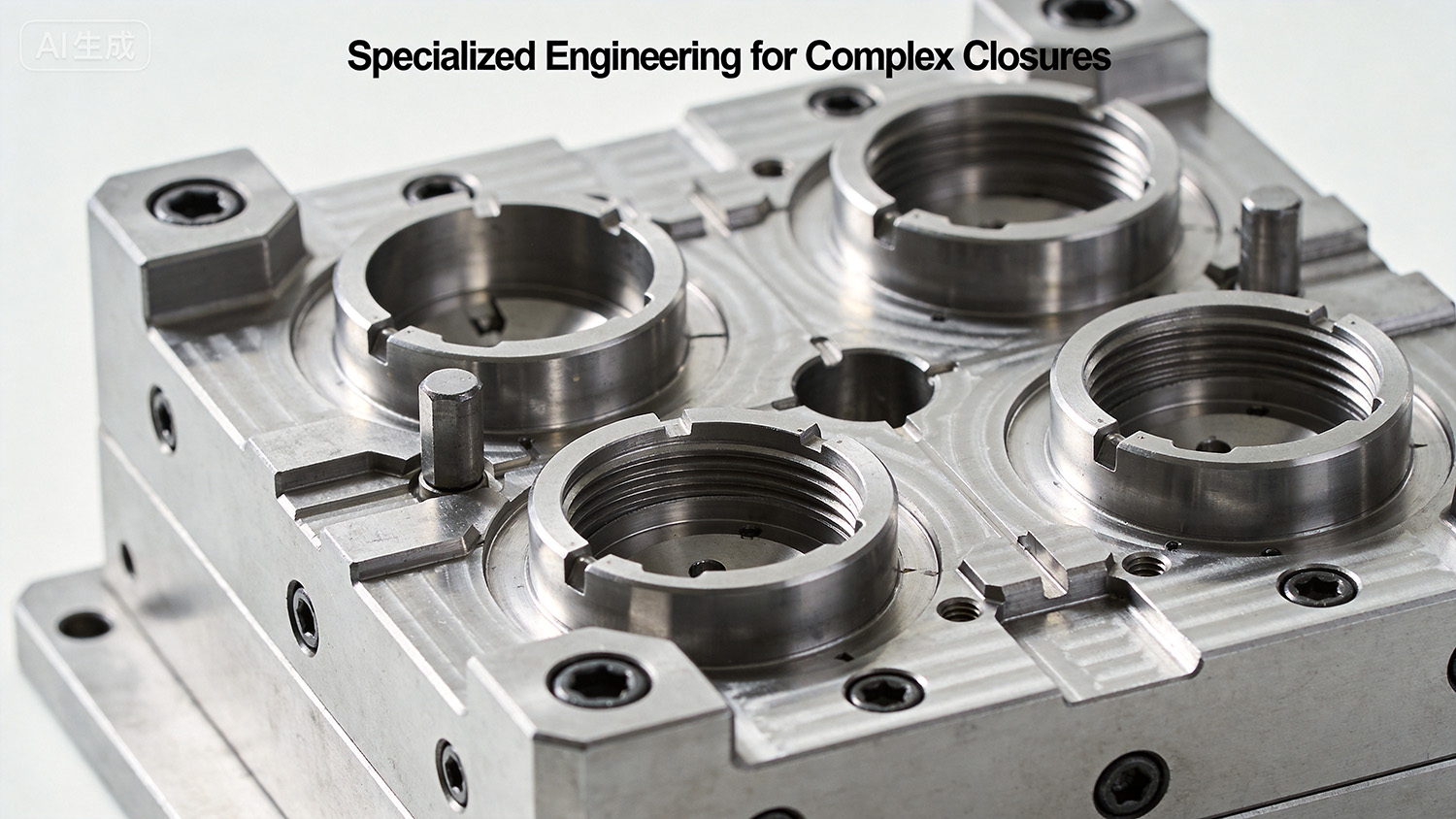

Our dedicated R&D team uses advanced Moldflow simulation and 5‑axis CNC machining to achieve ±0.005mm tolerances on every component. From two‑shot rotary moulds to intricate collapsible core designs, we engineer for flawless multi‑part assembly and reliable consumer use.

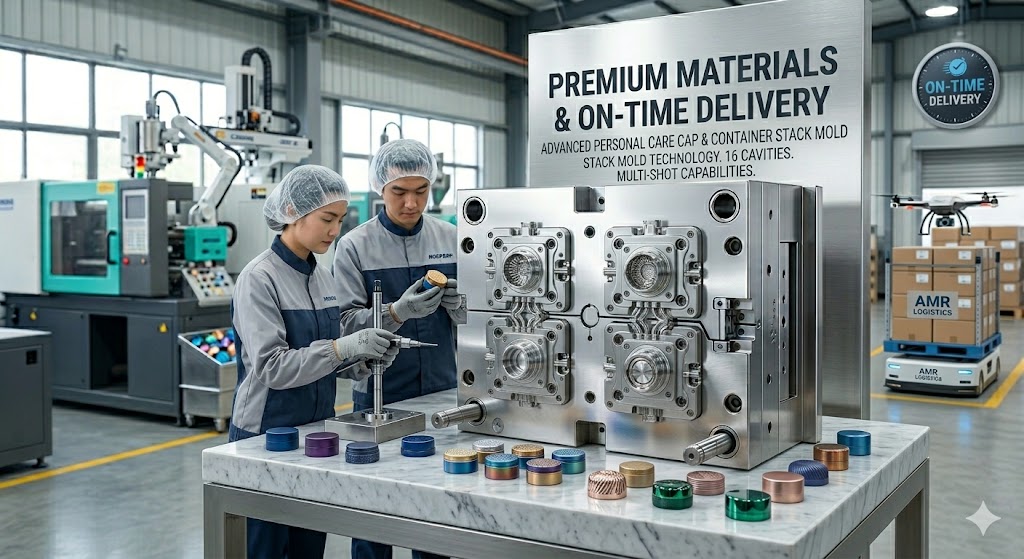

We exclusively use ASSAB S136, NAK80, and H13 tool steels with vacuum heat treatment to HRC 48‑52, ensuring 5M+ shot life. As a factory‑direct manufacturer, we control every process from steel procurement to trial run, delivering standard functional cap moulds in 30‑45 days.

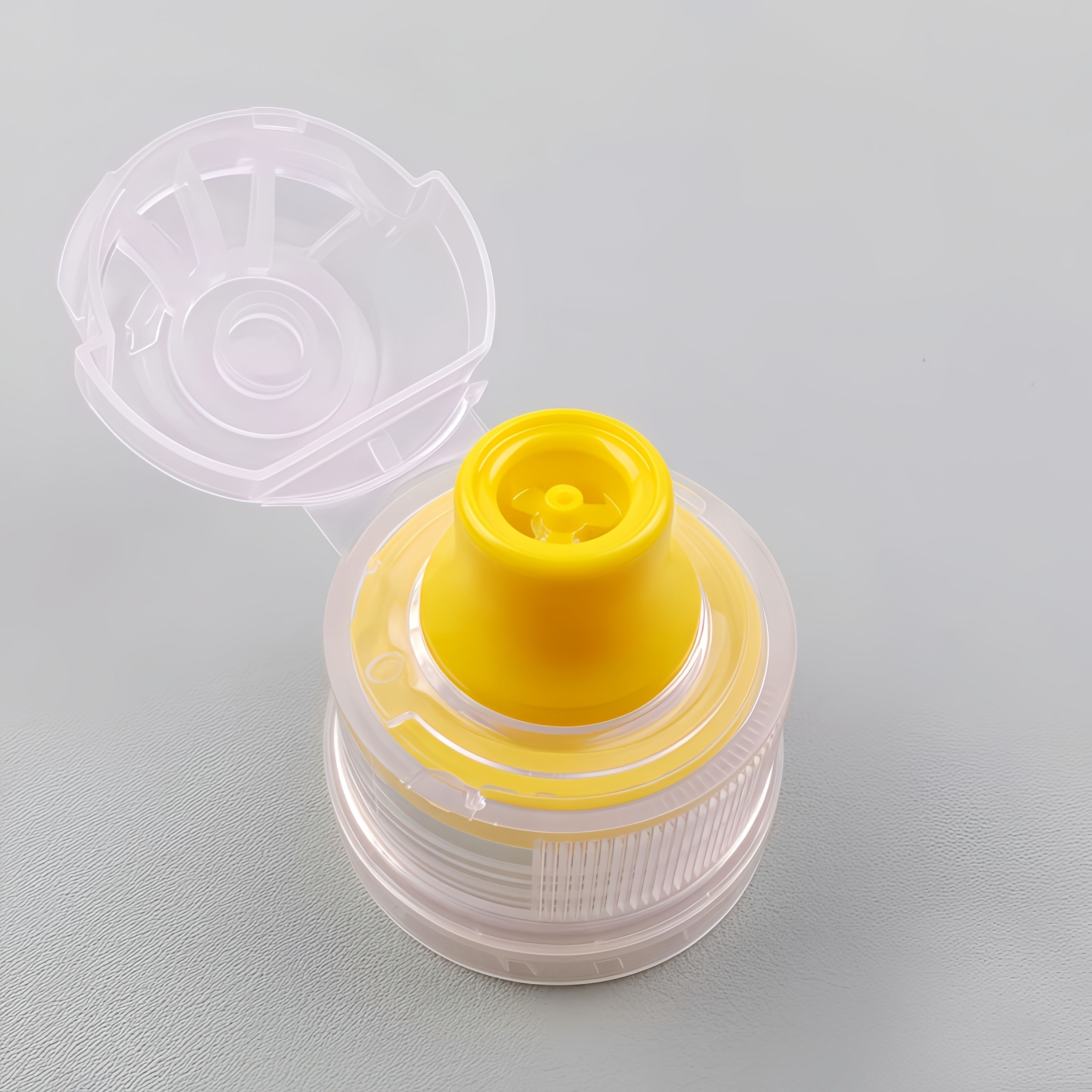

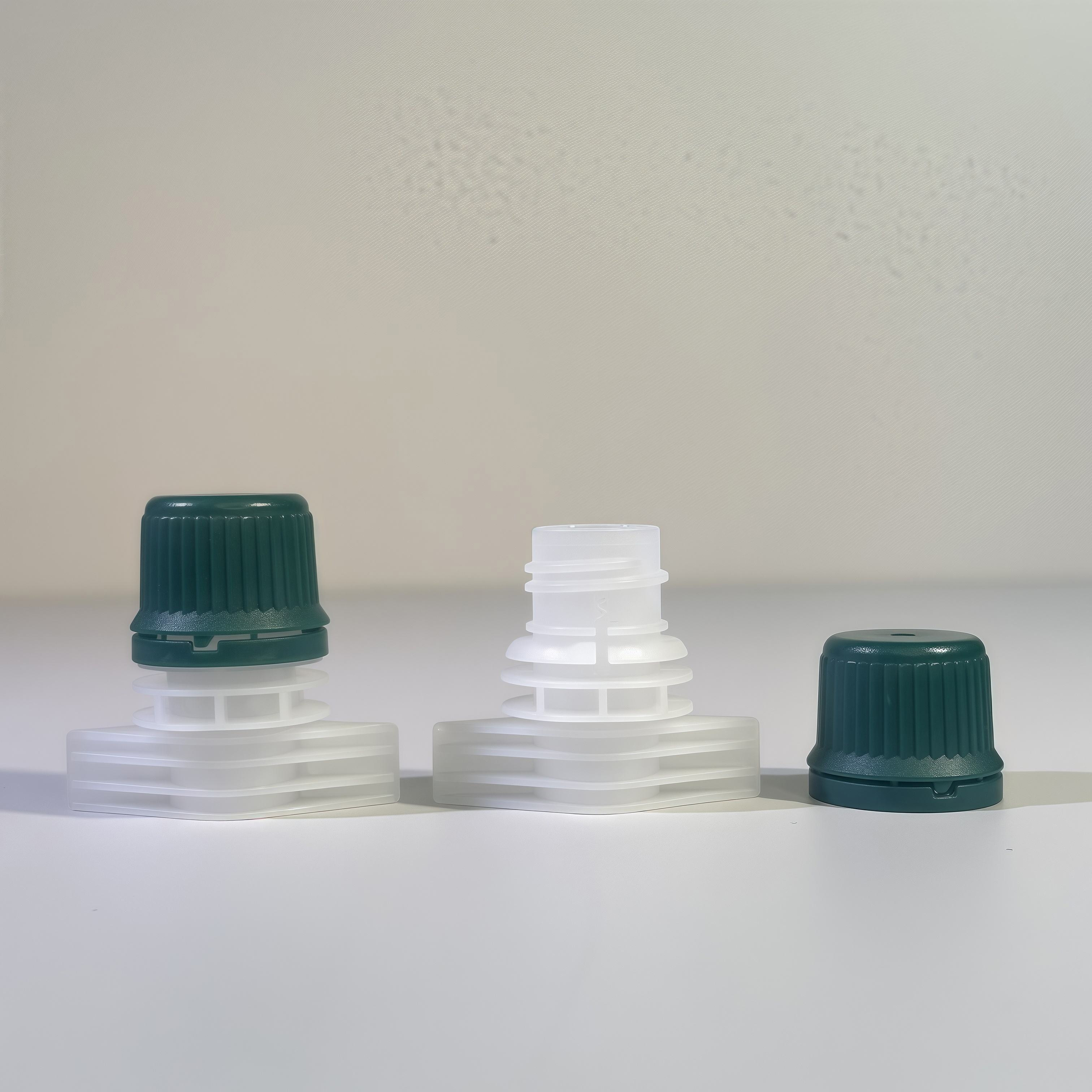

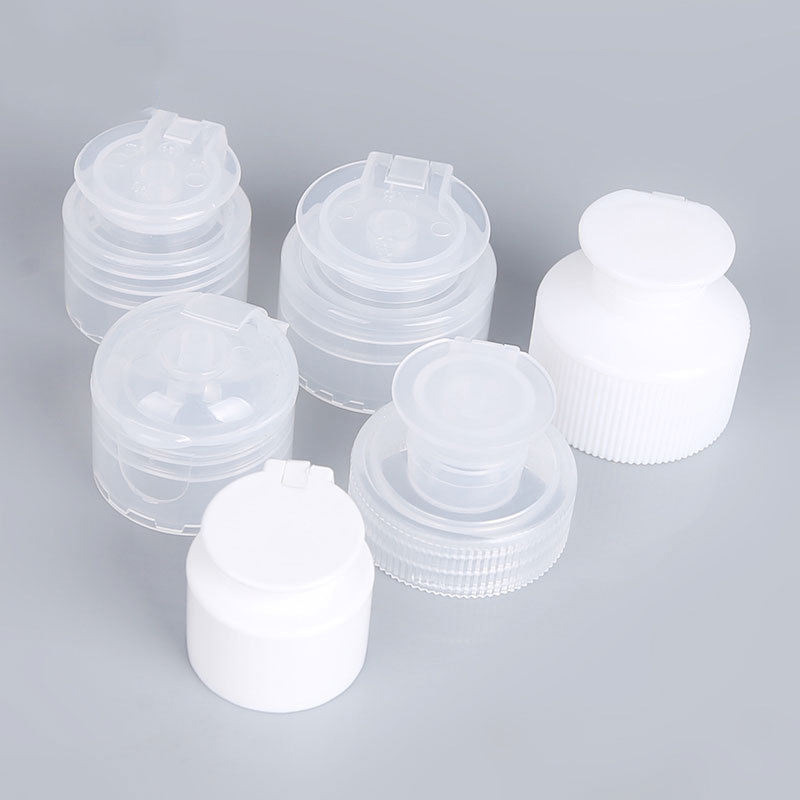

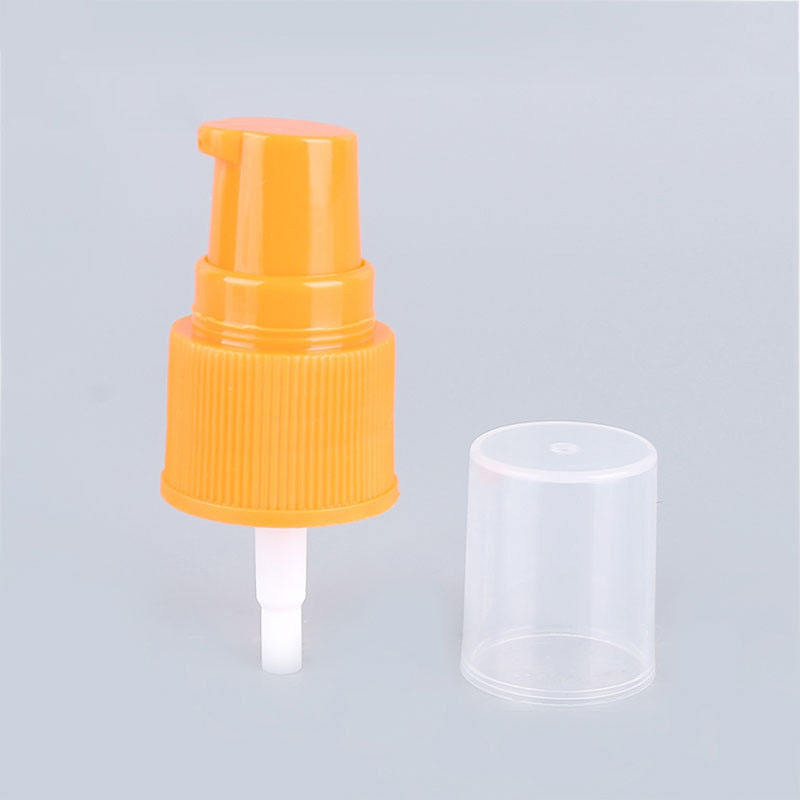

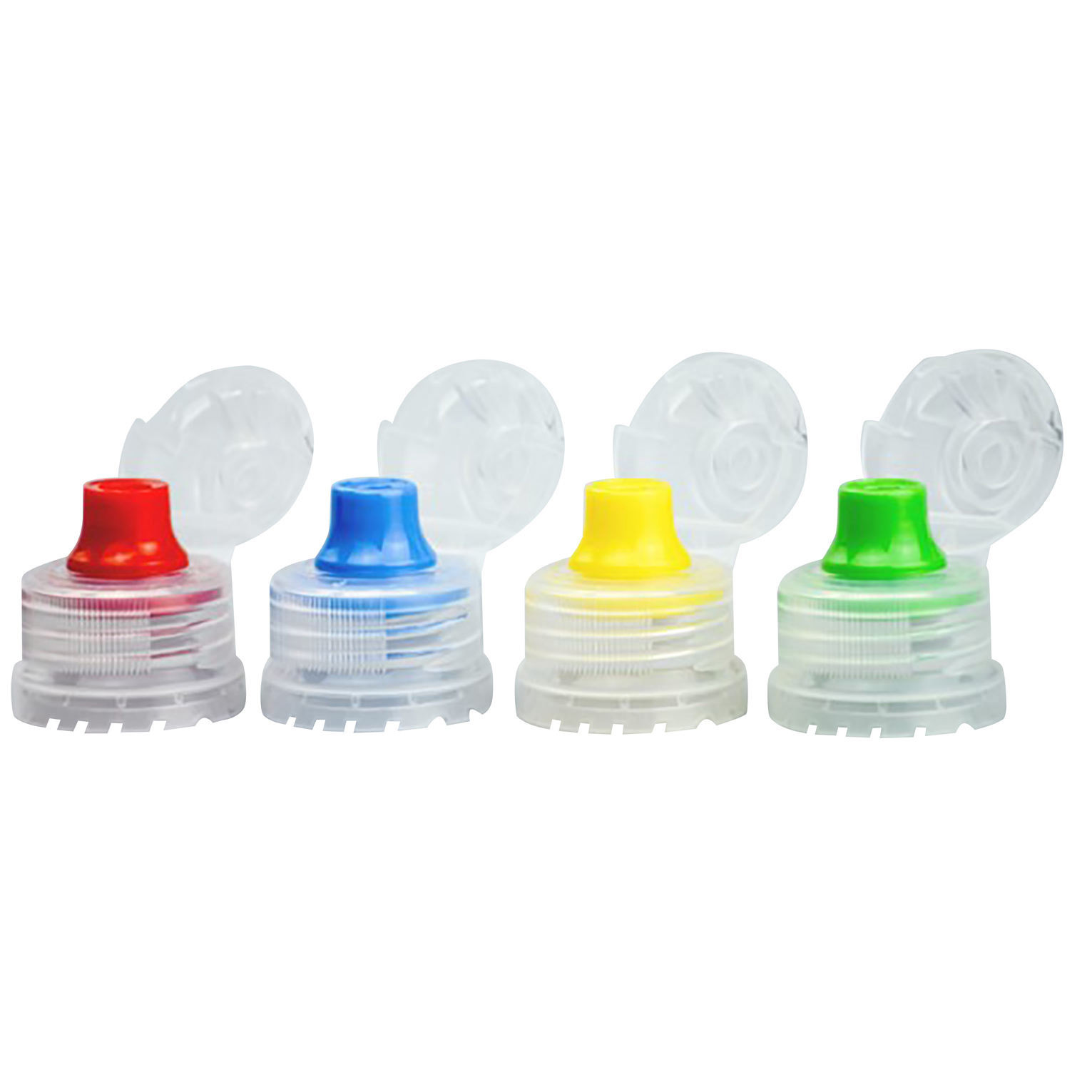

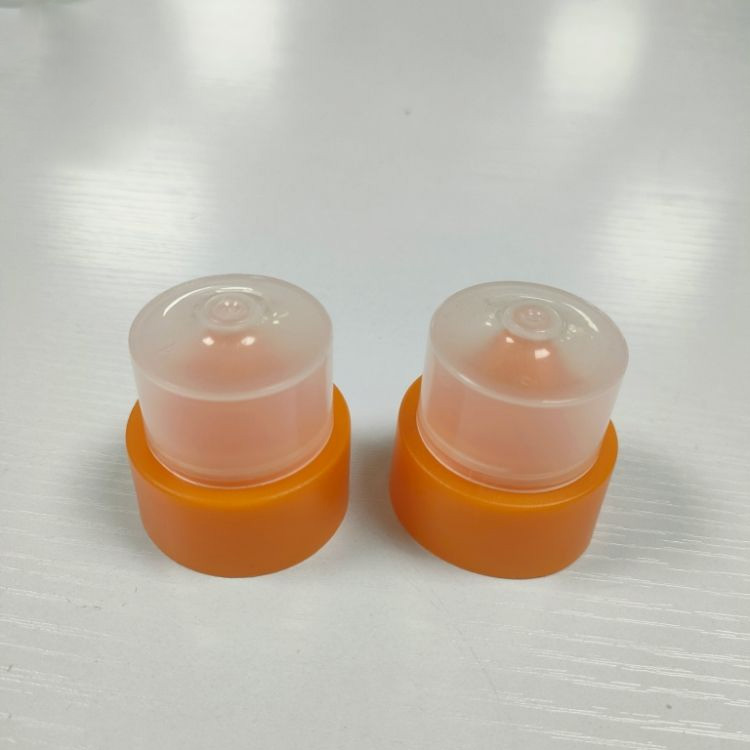

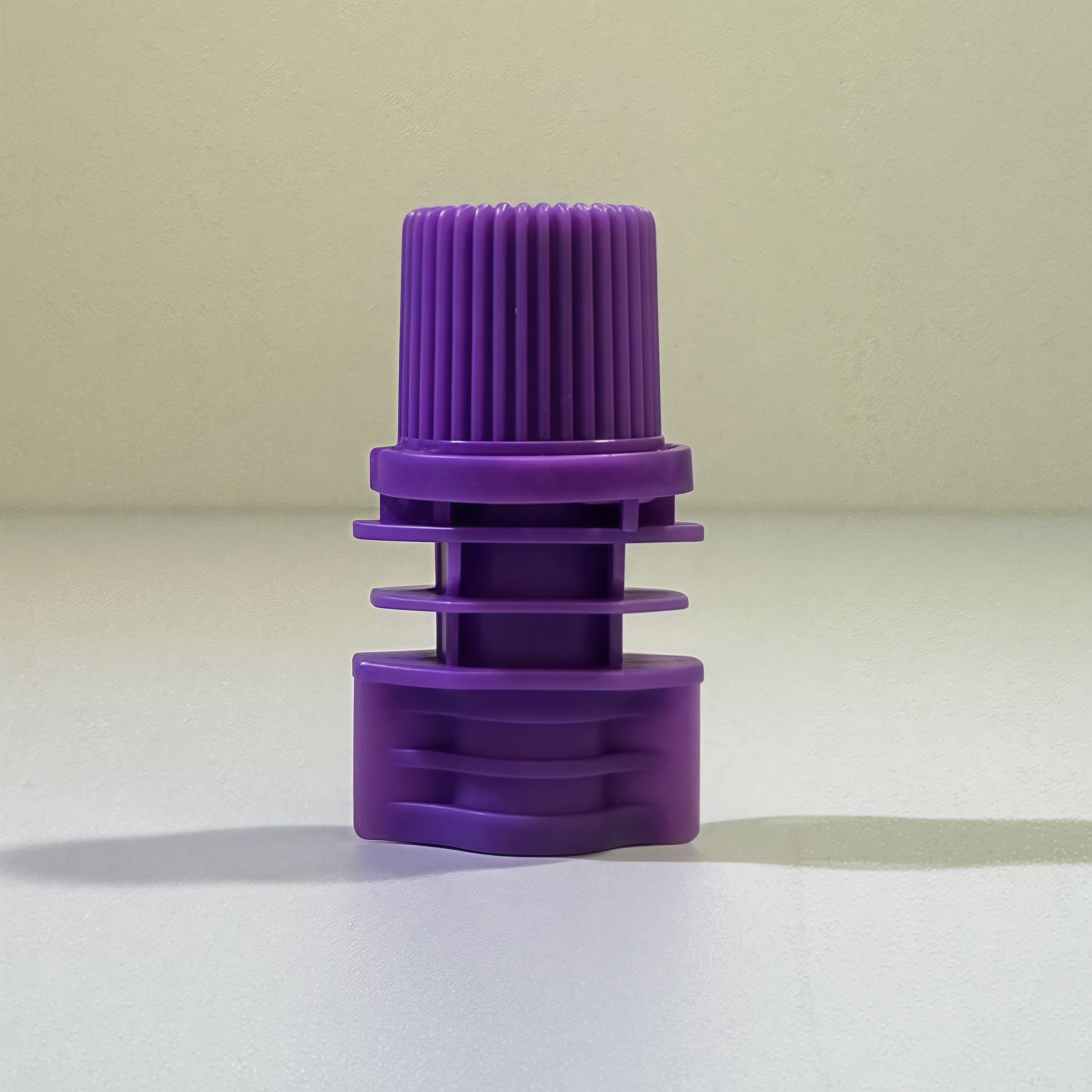

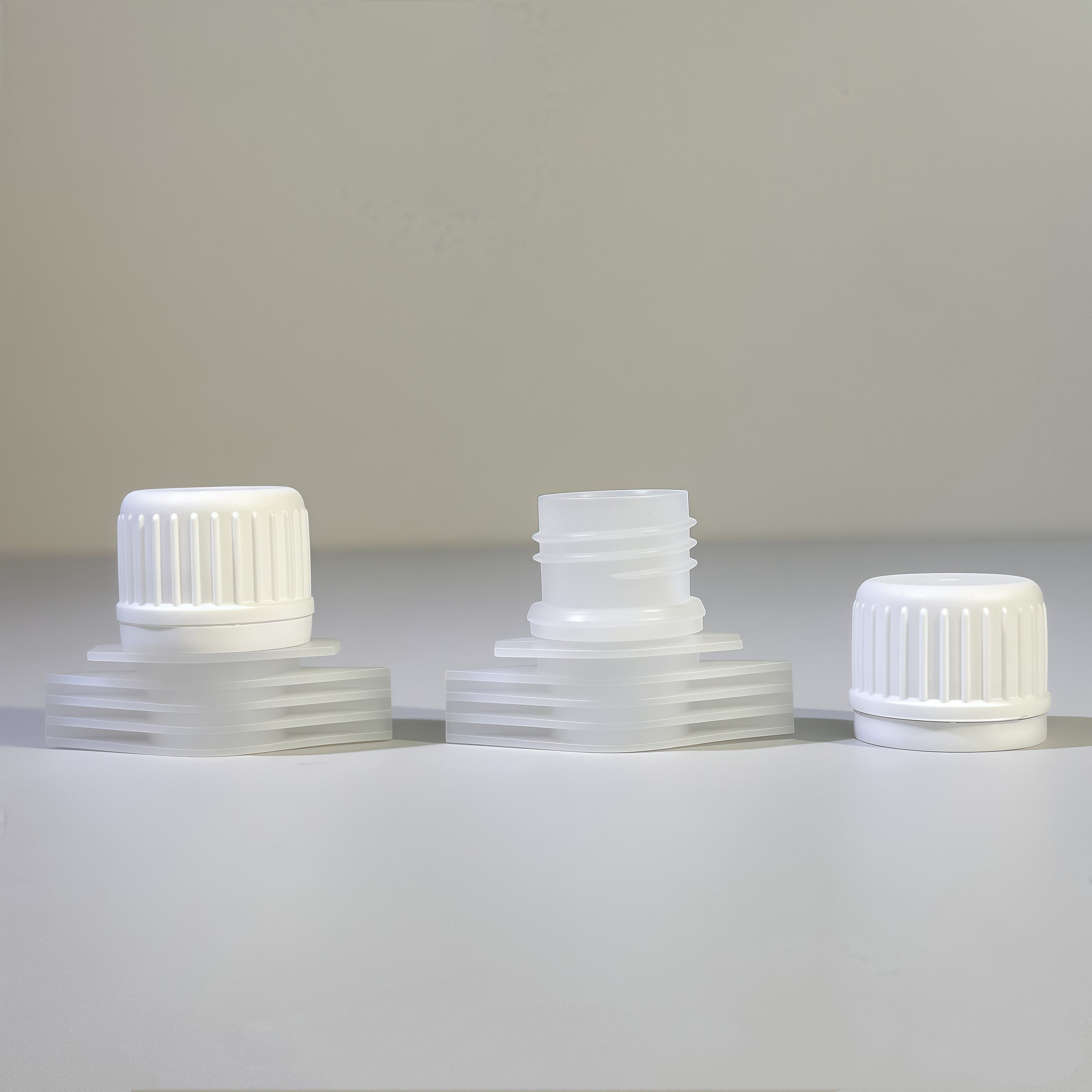

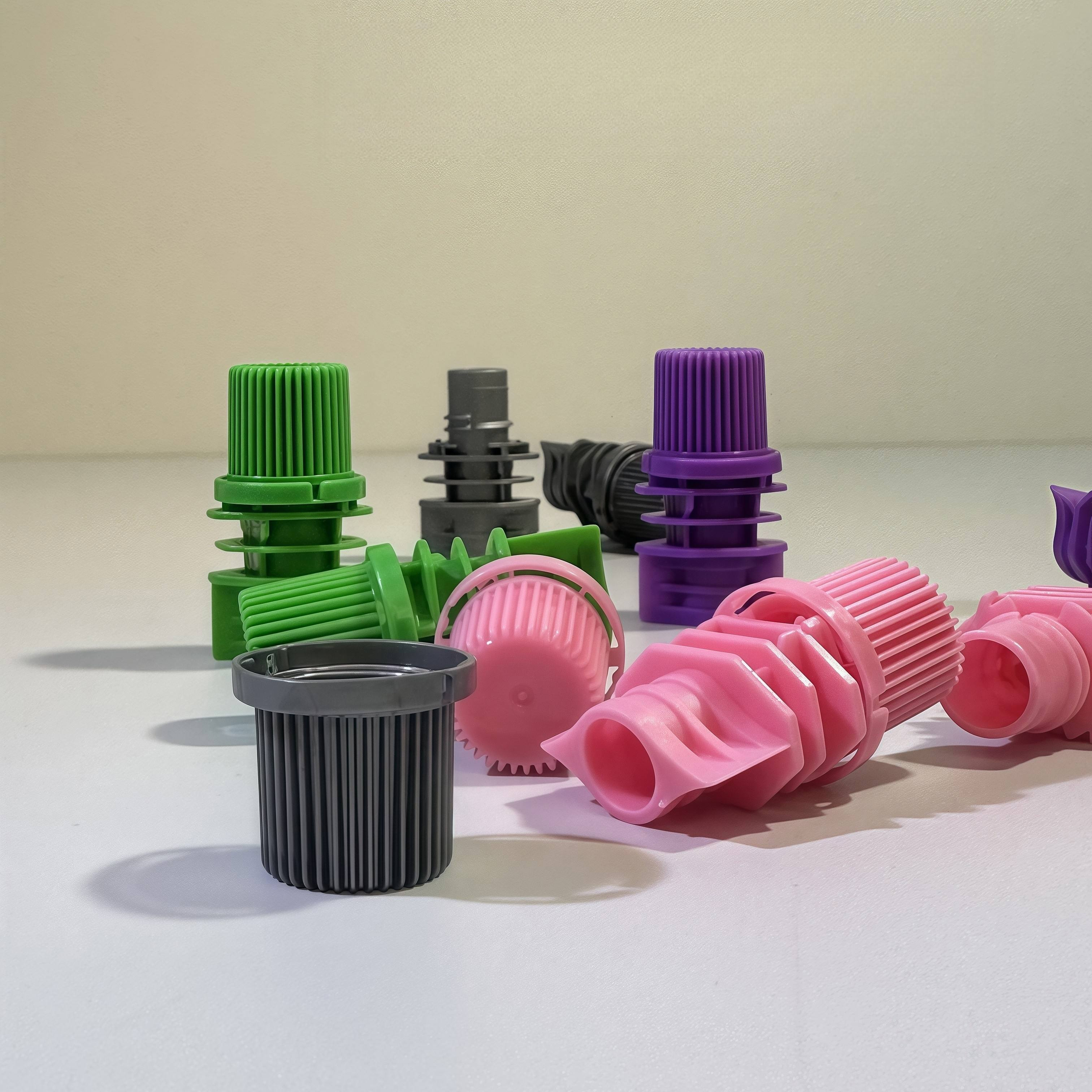

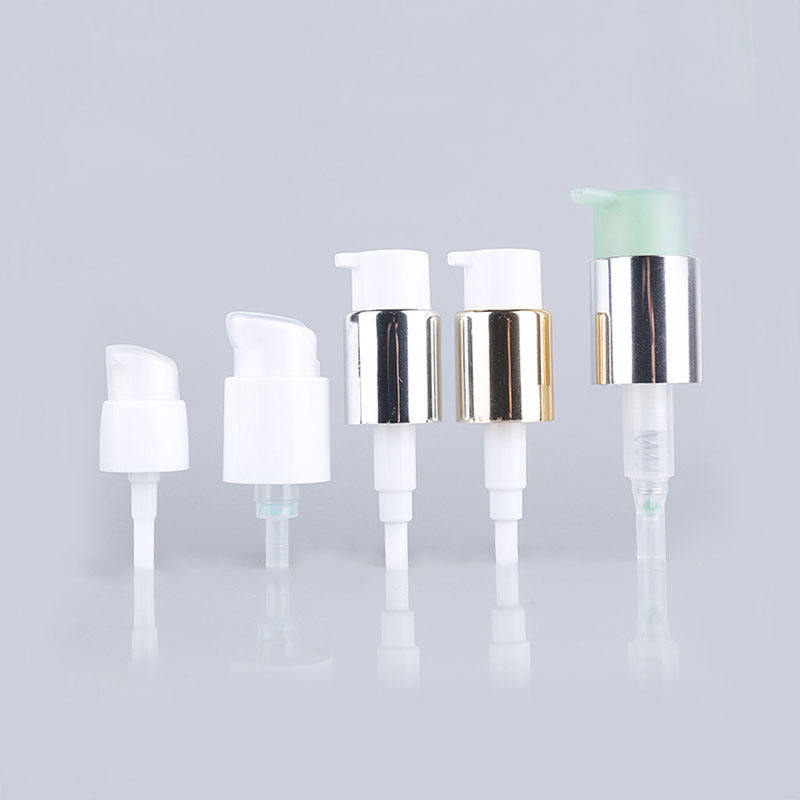

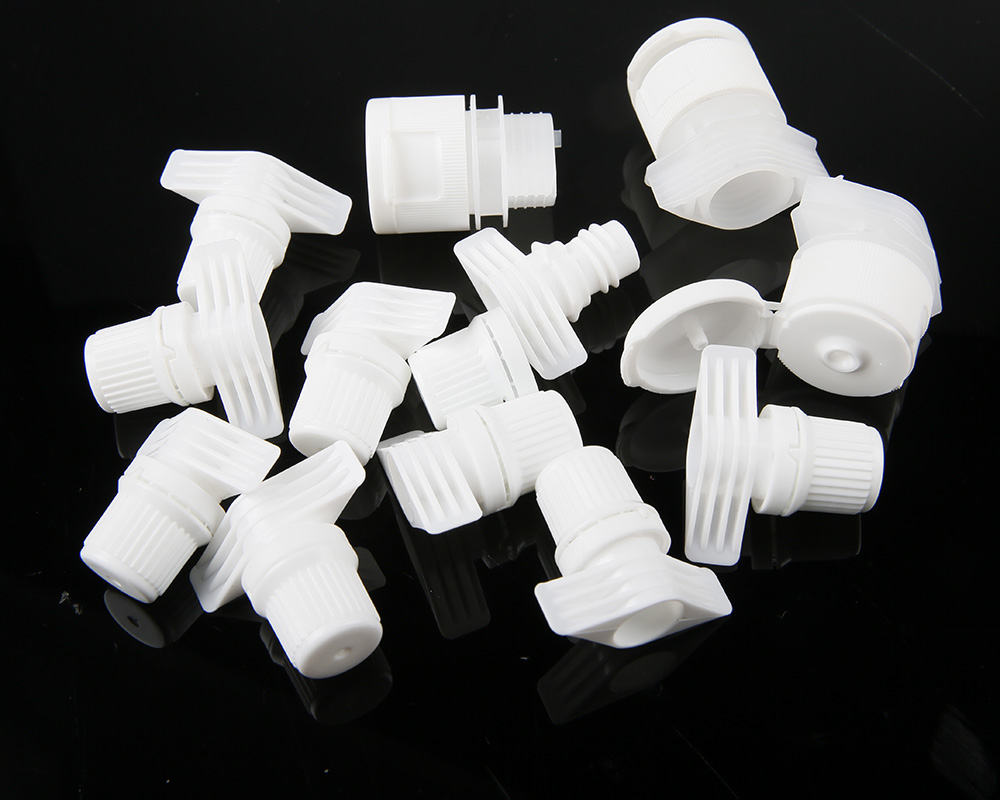

Click any image to enlarge. Real functional caps and mould details from our projects.
Every functional cap mould undergoes assembly testing, leak testing, and full dimensional verification.
Full dimensional report for all cavities.
Pressure and leak tests on assembled caps.
Push‑pull and flip‑top cycling up to 100,000 times.
Quality management system in place.

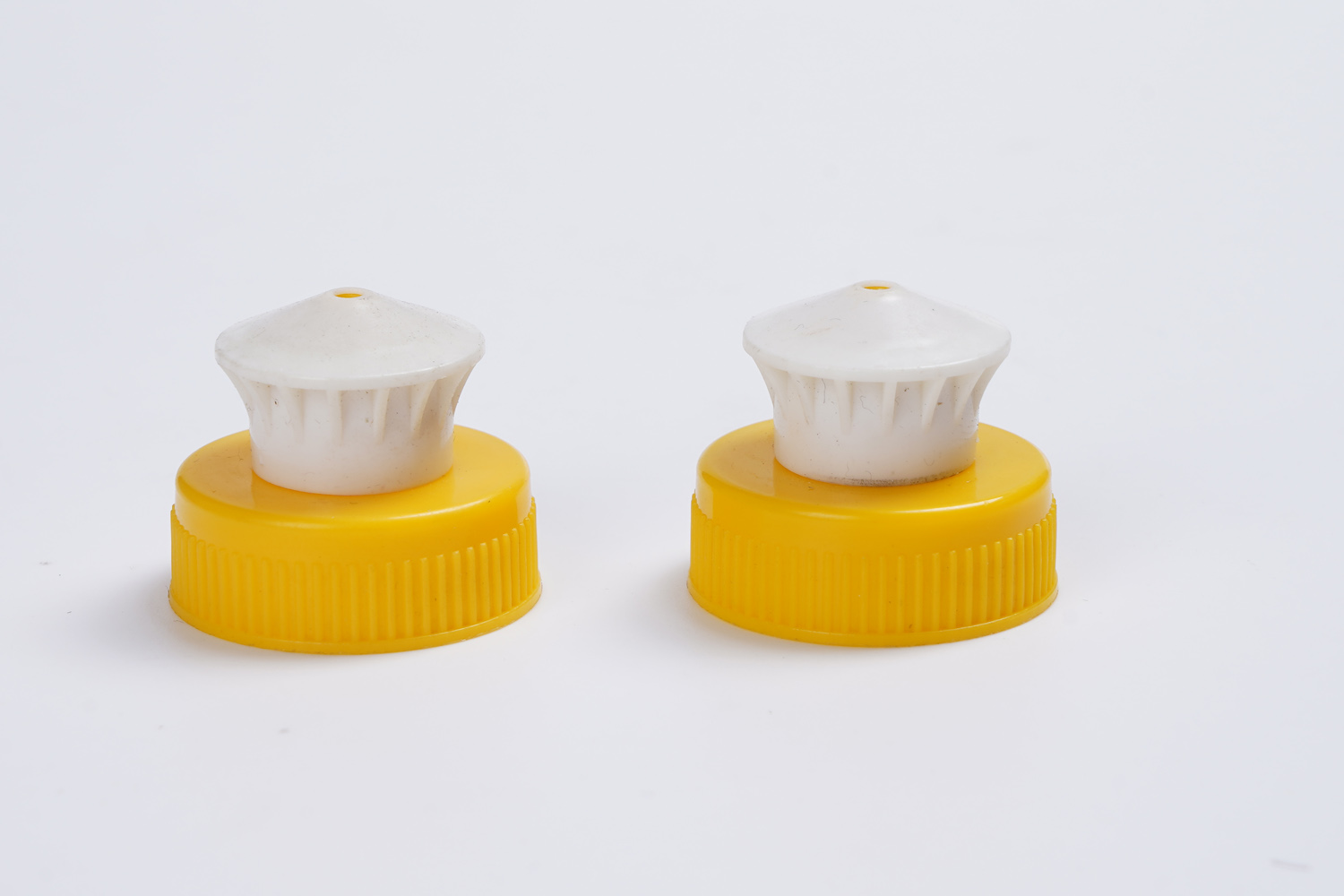

Yes, we offer rotary platen and core‑back two‑shot moulds for caps requiring soft‑touch seals or dual colors.
Our moulds incorporate precision valve seats and are leak‑tested with actual water pressure before shipment.
Absolutely. Our engineering team can design the complete closure from your concept, including all components and assembly fit.
30‑45 days for standard functional cap moulds. Rush orders in 25 days.
Kenji T., Quality Manager, Japan
Emma W., Packaging Engineer, United KingdomSend us your cap concept or sample for a free DFM analysis and quote. Response within 24 hours.
