flip top cap mould, flip top cap mold, plastic cap mould

What is flip top cap?

Flip top cap is kind of plastic cap, we can call it flip top closure also. Its top cap can be closed and opened, and cap is a complete whole one part. Flip top caps are widely used on the disinfectant bottle, cosmetical bottle, liquid soap bottle, laundry bottle, shampoo bottle, etc.

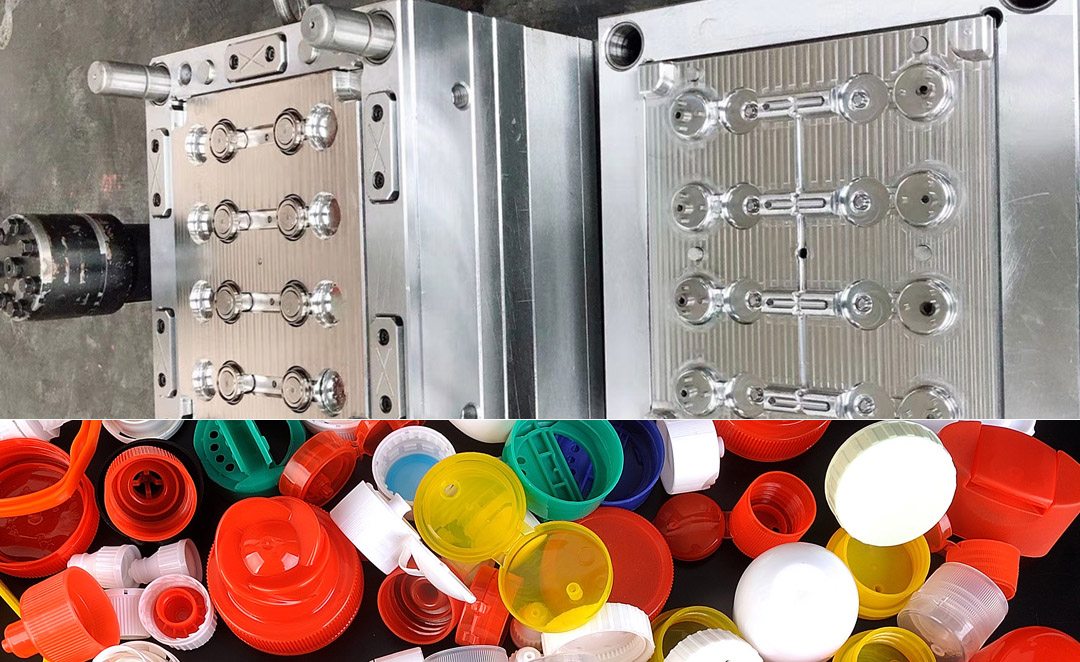

flip top cap mould, flip top cap mold, plastic cap mould

Mould steel: S136, H13 etc.

Mould base: P20 ect.

Cavity: 16

Runner: Cold runner

Mould life: More than 1,500,000 shots

Design software: UG, PROE, CADetc.

Plastic material: HDPE etc.

Delivery time: 45-55 days

Specification: According to client’s requirements

Packing: wooden case

Shipment: FOB Ningbo / Shanghai

Flip top cap mould design

Before start to flip top closure mould design, we need customers to send their injection machine specification to us. Especially the injection machine platen drawing, which we can find the tie bar distance, location ring diameter, knock out position and distance, SR, etc. And also need to inform us the type of cooling fitting required, and cooling diameter required.
